0535053071

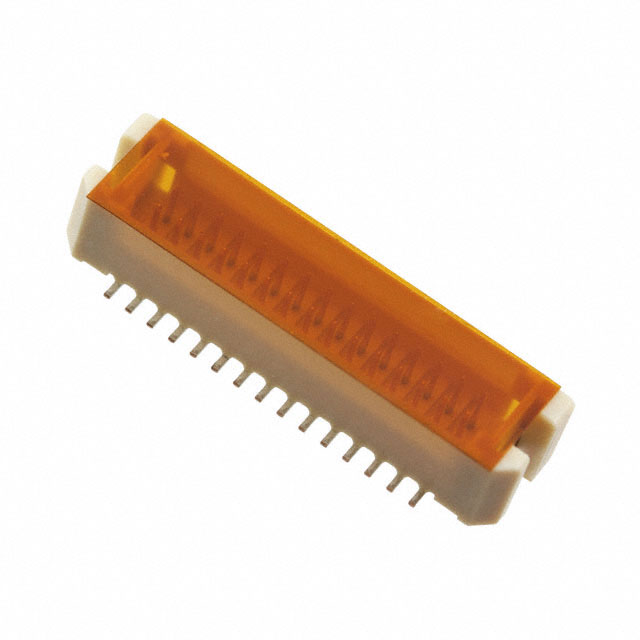

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0535053071 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0535053071 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0535053071 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HEADER DUAL VERT 30CKT SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0535053071 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER DUAL VERT 30CKT SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4010 pcs | Data sheet | 0535053071 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Pico-Gold 53505 |
| Row Spacing - Mating | 0.055" (1.40mm) | Pitch - Mating | 0.049" (1.25mm) |
| Packaging | Tape & Reel (TR) | Overall Contact Length | - |
| Other Names | 53505-3071 535053071 53553071 WM3944TR |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 30 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA), Nylon, Glass Filled | Insulation Height | 0.191" (4.85mm) |
| Insulation Color | - | Ingress Protection | - |
| Features | Board Guide, Pick and Place, Solder Retention | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Surface Mount 30 position 0.049" (1.25mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | - |
| Contact Length - Mating | - | Contact Finish Thickness - Post | 39.4µin (1.00µm) |
| Contact Finish Thickness - Mating | 78.7µin (2.00µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
