0534261210

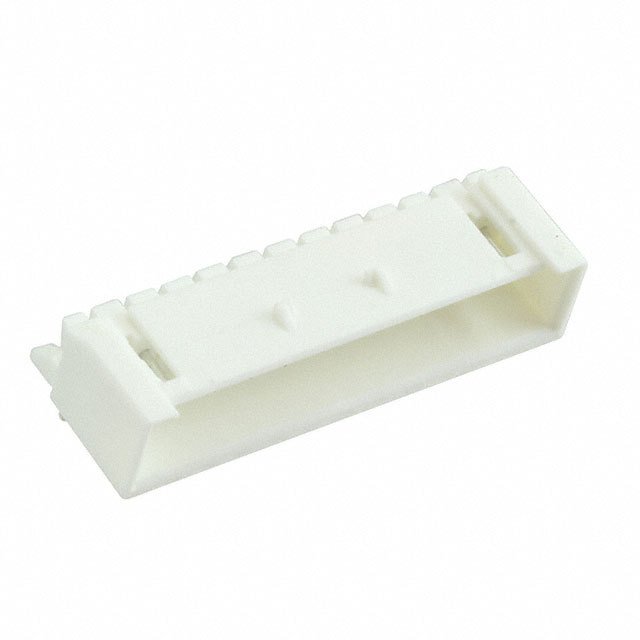

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0534261210 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0534261210 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0534261210 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | 2.5 WTB WAFER ASSY RA W/KINK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 400 pcs | 800 pcs | |
|---|---|---|---|---|---|
| $0.402 | $0.353 | $0.277 | $0.242 | ||
| 1200 pcs | 5200 pcs | 10000 pcs | |||
| $0.222 | $0.194 | $0.184 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0534261210 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | 2.5 WTB WAFER ASSY RA W/KINK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 110698 pcs | Data sheet | 534261210 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Kinked Pin, Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Mini-Lock 53426 |
| Row Spacing - Mating | - | Pitch - Mating | 0.098" (2.50mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 053426-1210 0534261210-ND 53426-1210 534261210 WM14655 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 12 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBTP) |
| Insulation Height | 0.264" (6.70mm) | Insulation Color | White |
| Ingress Protection | - | Features | - |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole, Right Angle 12 position 0.098" (2.50mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.134" (3.40mm) | Contact Length - Mating | 0.157" (4.00mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose, Industrial |
