0533980667

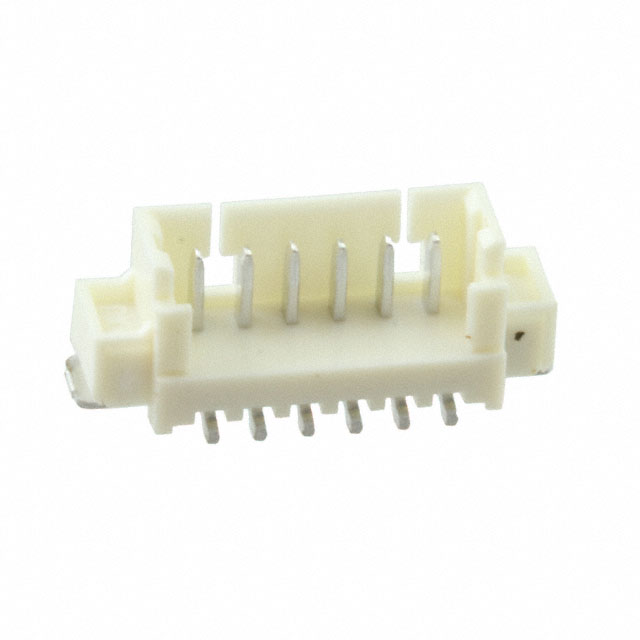

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0533980667 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0533980667 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0533980667 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | 125 WTB WAFER ASSY 6CKT EMBSTP P |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 2000 pcs | 3000 pcs | 5000 pcs | |
|---|---|---|---|---|---|
| $0.641 | $0.618 | $0.596 | $0.574 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0533980667 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | 125 WTB WAFER ASSY 6CKT EMBSTP P | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 64886 pcs | Data sheet | 533980667 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 3 Wall | Series | PicoBlade 53398 |
| Row Spacing - Mating | - | Pitch - Mating | 0.049" (1.25mm) |
| Packaging | Tape & Reel (TR) | Overall Contact Length | - |
| Other Names | 053398-0667 0533980667-ND 53398-0667 533980667 WM12334TR |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 6 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | - |
| Insulation Height | - | Insulation Color | Natural |
| Ingress Protection | - | Features | Solder Retention |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Surface Mount 6 position 0.049" (1.25mm) |
| Current Rating | - | Contact Type | Male Blade |
| Contact Shape | Rectangular | Contact Material | - |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - | Contact Finish - Mating | - |
| Connector Type | Header | Applications | Automotive, General Purpose, Industrial, Medical |
