0533240360

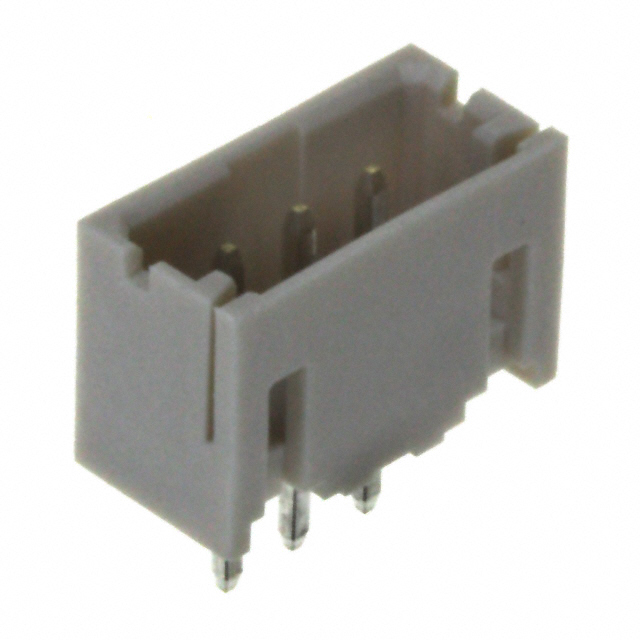

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0533240360 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0533240360 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0533240360 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HEADER 2MM 3POS PCB TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.184 | $0.172 | $0.132 | $0.114 | ||
| 3000 pcs | 6000 pcs | 12000 pcs | |||
| $0.086 | $0.083 | $0.076 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0533240360 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER 2MM 3POS PCB TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 258449 pcs | Data sheet | 53324-xx6x Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Kinked Pin, Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Mi II 53324 |
| Row Spacing - Mating | - | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 053324-0360 053324-0360-E 0533240360-E 53324-0360 53324-0360-E 533240360 533240360-E WM8313 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 3 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Insulation Height | 0.236" (6.00mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Through Hole 3 position 0.079" (2.00mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.138" (3.50mm) | Contact Length - Mating | 0.136" (3.45mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
