0532611771

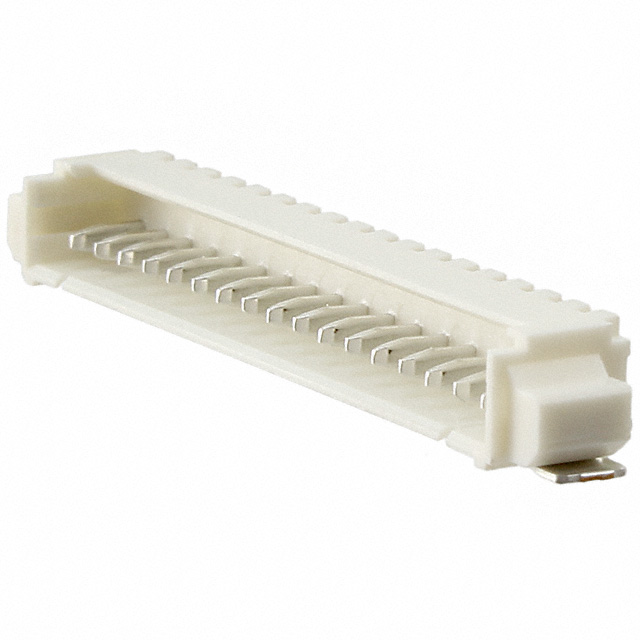

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0532611771 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0532611771 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0532611771 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | 1.25 WTB WAFER ASSY 17CKT SMTRA |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 2000 pcs | |||
|---|---|---|---|---|---|
| $1.545 | $1.512 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0532611771 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | 1.25 WTB WAFER ASSY 17CKT SMTRA | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 25884 pcs | Data sheet | 51021-0024 Prod Spec53261-002 Pkg Spec532611771 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | PicoBlade 53261 |
| Row Spacing - Mating | - | Pitch - Mating | 0.049" (1.25mm) |
| Packaging | Tape & Reel (TR) | Overall Contact Length | - |
| Other Names | 053261-1771 0532611771-ND 53261-1771 532611771 WM10108TR |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 17 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA46), Nylon 4/6 |
| Insulation Height | 0.134" (3.40mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Solder Retention |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Surface Mount, Right Angle 17 position 0.049" (1.25mm) |
| Current Rating | - | Contact Type | Male Blade |
| Contact Shape | Rectangular | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive, General Purpose, Industrial, Medical |
