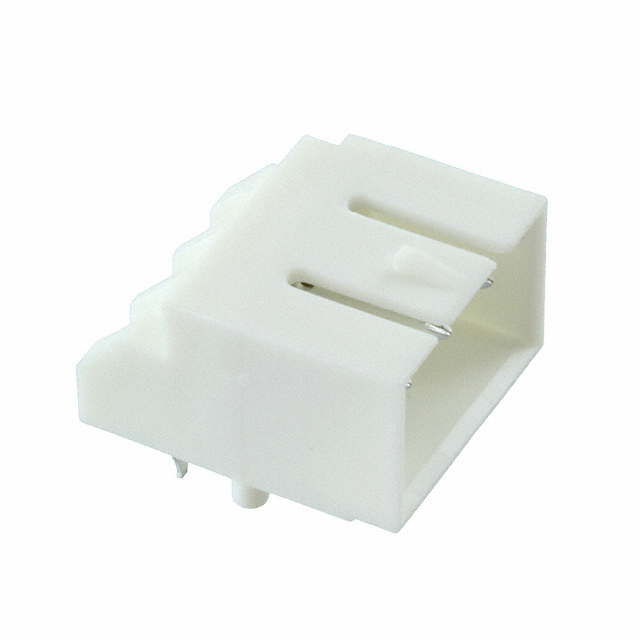

0532590329
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0532590329 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0532590329 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0532590329 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | 3.5 WTB WAFER ASSY RA 3CKT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 600 pcs | |
|---|---|---|---|---|---|
| $0.234 | $0.218 | $0.167 | $0.146 | ||
| 1200 pcs | 5400 pcs | 10200 pcs | |||
| $0.12 | $0.106 | $0.098 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0532590329 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | 3.5 WTB WAFER ASSY RA 3CKT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 196076 pcs | Data sheet | 3.5mm Center Prod Spec532590329 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | 53259 |
| Row Spacing - Mating | - | Pitch - Mating | 0.138" (3.50mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 053259-0329 0532590329-ND 53259-0329 532590329 WM14649 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 3 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBTP) |
| Insulation Height | 0.311" (7.90mm) | Insulation Color | - |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole, Right Angle 3 position 0.138" (3.50mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.138" (3.50mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
