0532580529

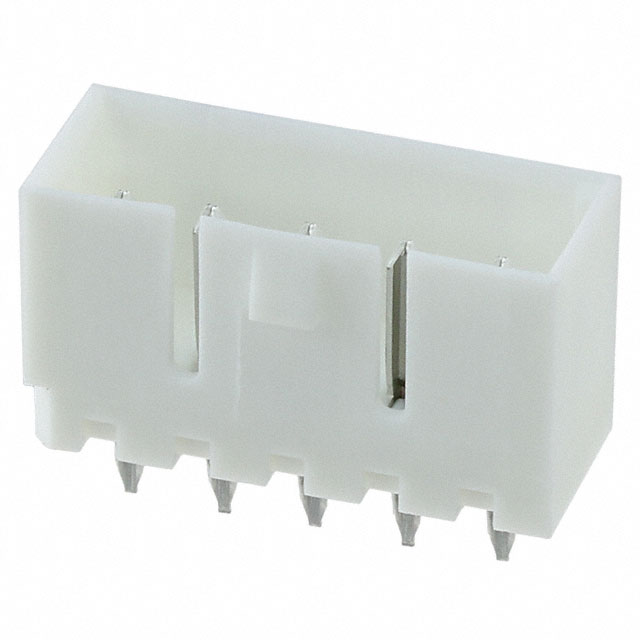

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0532580529 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0532580529 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0532580529 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | 5CKT 3.5MM W TO B CONN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 700 pcs | |
|---|---|---|---|---|---|
| $0.339 | $0.298 | $0.257 | $0.21 | ||
| 1400 pcs | 5600 pcs | 10500 pcs | |||
| $0.187 | $0.163 | $0.155 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0532580529 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | 5CKT 3.5MM W TO B CONN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 127082 pcs | Data sheet | 5325805293.5mm Center Prod Spec53258 Pkg Spec532580529 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Press-Fit, Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | 53258 |
| Row Spacing - Mating | - | Pitch - Mating | 0.138" (3.50mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 053258-0529 0532580529-ND 53258-0529 532580529 WM14644 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 5 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBTP) |
| Insulation Height | 0.413" (10.49mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | - |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole 5 position 0.138" (3.50mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.138" (3.50mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
