0532540770

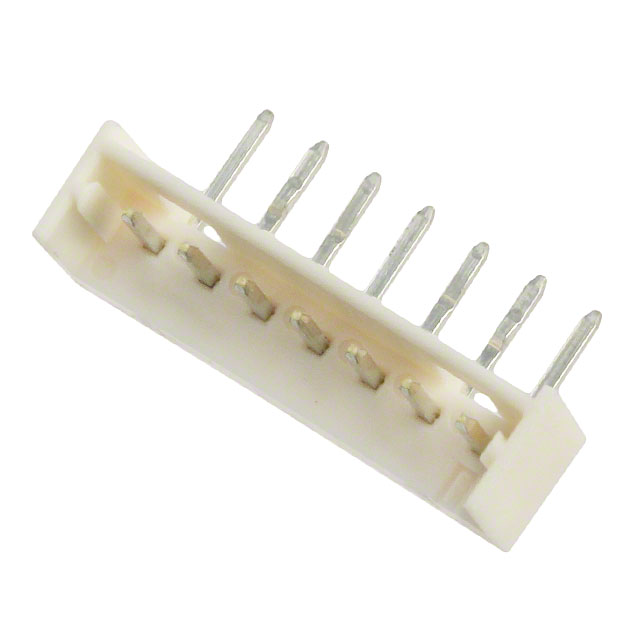

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0532540770 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0532540770 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0532540770 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | HEADER 2MM WTB R/A SQ PIN 7CKT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.127 | $0.121 | $0.085 | $0.073 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.06 | $0.052 | $0.048 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0532540770 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | HEADER 2MM WTB R/A SQ PIN 7CKT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 469041 pcs | Data sheet | 0532540770 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Kinked Pin, Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 3 Wall | Series | Micro-Latch 53254 |
| Row Spacing - Mating | - | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 053254-0770 53254-0770 532540770 WM3412 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 7 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | - |
| Insulation Height | 0.165" (4.20mm) | Insulation Color | - |
| Ingress Protection | - | Features | - |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Through Hole, Right Angle 7 position 0.079" (2.00mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.138" (3.50mm) | Contact Length - Mating | 0.130" (3.30mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive, General Purpose |
