0528521670

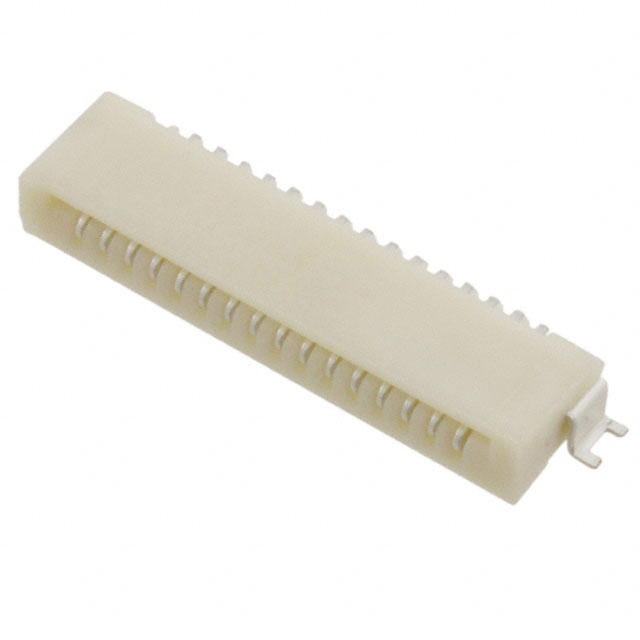

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0528521670 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0528521670 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0528521670 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN FFC BOTTOM 16POS 1.00MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.501 | $0.441 | $0.414 | $0.397 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $0.38 | $0.345 | $0.311 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0528521670 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN FFC BOTTOM 16POS 1.00MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 61057 pcs | Data sheet | 0528521670 |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | Easy-On 52852 |
| Pitch | 0.039" (1.00mm) | Packaging | Cut Tape (CT) |
| Other Names | WM3395CT | Operating Temperature | -20°C ~ 80°C |
| Number of Positions | 16 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 10 |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 10 Weeks |
| Locking Feature | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyphenylene Sulfide (PPS) | Housing Color | - |
| Height Above Board | 0.122" (3.10mm) | Flat Flex Type | FFC, FPC |
| Features | Solder Retention | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 16 Position FFC, FPC Connector Contacts, Bottom 0.039" (1.00mm) Surface Mount, Right Angle | Current Rating | 0.5A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | - |
| Contact Finish | Tin Bismuth | Connector/Contact Type | Contacts, Bottom |
| Cable End Type | Straight | Actuator Material | - |
| Actuator Color | - |
