0528081470

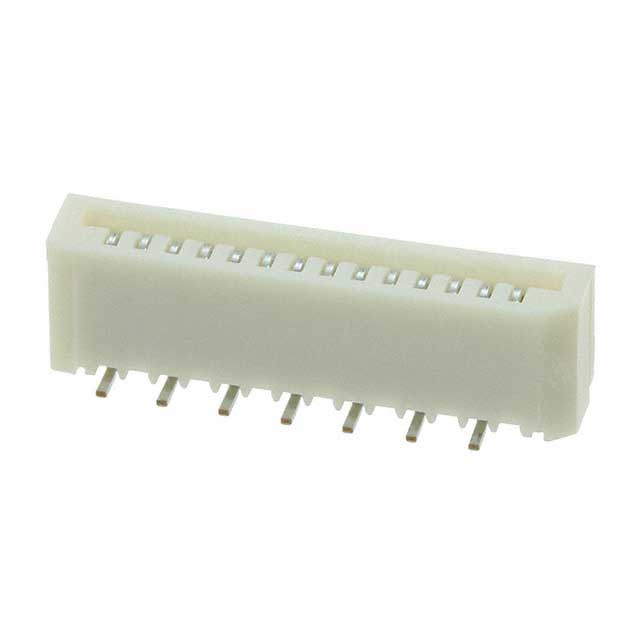

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0528081470 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0528081470 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0528081470 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN FPC VERT 14POS 1.00MM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.265 | $0.233 | $0.219 | $0.21 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $0.20 | $0.182 | $0.164 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0528081470 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN FPC VERT 14POS 1.00MM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 123996 pcs | Data sheet | 0528081470 |
| Category | Connectors, Interconnects | Voltage Rating | 125V |
| Termination | Solder | Series | Easy-On 52808 |
| Pitch | 0.039" (1.00mm) | Packaging | Cut Tape (CT) |
| Other Names | WM3765CT | Operating Temperature | -20°C ~ 85°C |
| Number of Positions | 14 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 10 |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 9 Weeks |
| Locking Feature | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyphenylene Sulfide (PPS) | Housing Color | - |
| Height Above Board | 0.199" (5.05mm) | Flat Flex Type | FPC |
| Features | - | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 14 Position FPC Connector Contacts, Vertical, 1 Sided 0.039" (1.00mm) Surface Mount | Current Rating | 0.5A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | - |
| Contact Finish | Tin Bismuth | Connector/Contact Type | Contacts, Vertical, 1 Sided |
| Cable End Type | Straight | Actuator Material | - |
| Actuator Color | - |
