0528073010

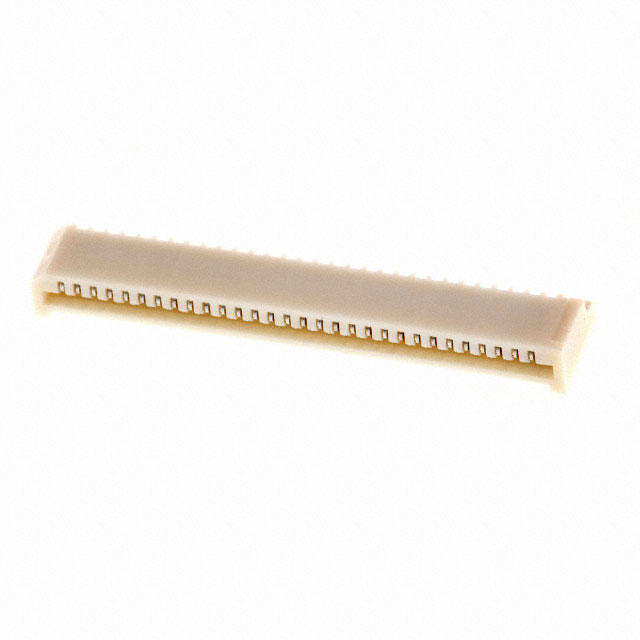

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0528073010 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0528073010 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0528073010 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN FPC TOP 30POS 1.00MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.423 | $0.37 | $0.349 | $0.334 | $0.32 | |
| 450 pcs | 900 pcs | 1350 pcs | 2700 pcs | ||
| $0.291 | $0.254 | $0.232 | $0.211 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0528073010 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN FPC TOP 30POS 1.00MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 96052 pcs | Data sheet | 528073010 Drawing52807-001 Pkg Spec52807-003 Prod Spec |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Kinked Pin | Series | 52807 |
| Pitch | 0.039" (1.00mm) | Packaging | Tray |
| Other Names | 052807-3010 0528073010-ND 52807-3010 528073010 WM17282 |
Operating Temperature | -20°C ~ 80°C |
| Number of Positions | 30 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 14 Weeks |
| Locking Feature | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyphenylene Sulfide (PPS) | Housing Color | - |
| Height Above Board | 0.142" (3.60mm) | Flat Flex Type | FPC |
| Features | - | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 30 Position FPC Connector Contacts, Top 0.039" (1.00mm) Through Hole, Right Angle | Current Rating | 0.5A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | - |
| Contact Finish | Tin | Connector/Contact Type | Contacts, Top |
| Cable End Type | Straight | Actuator Material | - |
| Actuator Color | - |
