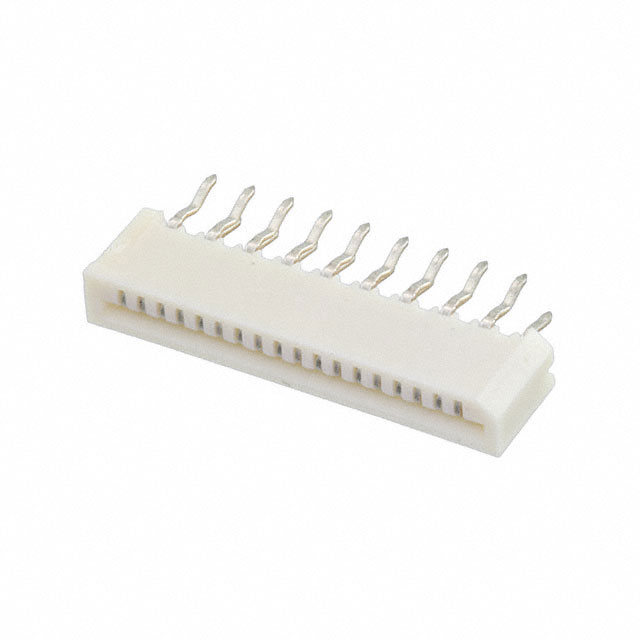

0528061810
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0528061810 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0528061810 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0528061810 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN FPC VERT 18POS 1.00MM PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.197 | $0.183 | $0.165 | $0.147 | $0.141 | |
| 250 pcs | 500 pcs | 1500 pcs | 3000 pcs | ||
| $0.128 | $0.122 | $0.098 | $0.092 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0528061810 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN FPC VERT 18POS 1.00MM PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 211130 pcs | Data sheet | 1810 |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Kinked Pin | Series | 52806 |
| Pitch | 0.039" (1.00mm) | Packaging | Tray |
| Other Names | 052806-1810 052806-1810-C 0528061810-C 52806-1810 52806-1810-C 52806-1810-ND 528061810 528061810-C WM6480 |
Operating Temperature | -20°C ~ 80°C |
| Number of Positions | 18 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 10 |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 14 Weeks |
| Locking Feature | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyphenylene Sulfide (PPS) | Housing Color | - |
| Height Above Board | 0.213" (5.40mm) | Flat Flex Type | FPC |
| Features | - | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 18 Position FPC Connector Contacts, Vertical, 1 Sided 0.039" (1.00mm) Through Hole | Current Rating | 0.5A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | - |
| Contact Finish | Tin | Connector/Contact Type | Contacts, Vertical, 1 Sided |
| Cable End Type | Straight | Actuator Material | - |
| Actuator Color | - |
