0526102071

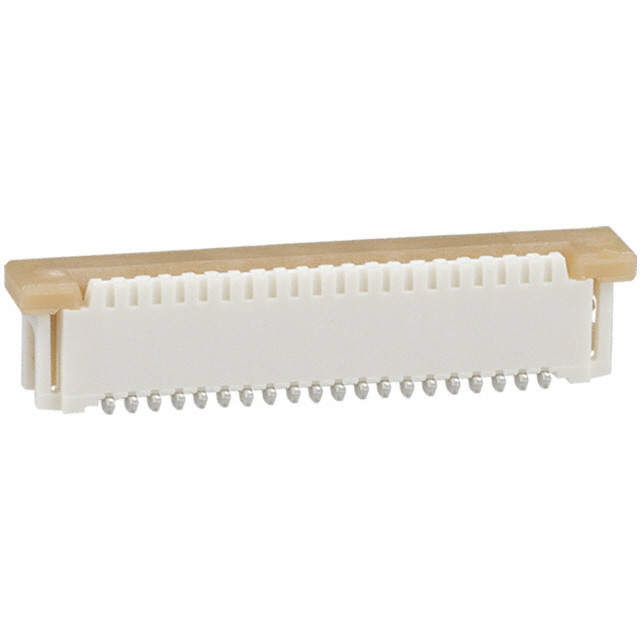

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0526102071 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0526102071 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0526102071 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN FFC VERT 20POS 1.00MM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0526102071 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN FFC VERT 20POS 1.00MM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5868 pcs | Data sheet | 52610-2071 |
| Category | Connectors, Interconnects | Voltage Rating | 125V |
| Termination | Solder | Series | Easy-On 52610 |
| Pitch | 0.039" (1.00mm) | Packaging | Tape & Reel (TR) |
| Other Names | 052610-2071 052610-2071-C 0526102071-C 52610-2071 52610-2071-C 526102071 526102071-C WM7640TR |
Operating Temperature | -40°C ~ 85°C |
| Number of Positions | 20 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 30 |
| Material Flammability Rating | UL94 V-0 | Locking Feature | Slide Lock |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Polyamide (PA46), Nylon 4/6 |
| Housing Color | - | Height Above Board | 0.226" (5.74mm) |
| Flat Flex Type | - | Features | Zero Insertion Force (ZIF) |
| FFC, FCB Thickness | 0.30mm | Detailed Description | 20 Position Connector Contacts, Vertical, 1 Sided 0.039" (1.00mm) Surface Mount |
| Current Rating | 1A | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | 39.4µin (1.00µm) | Contact Finish | Tin Bismuth |
| Connector/Contact Type | Contacts, Vertical, 1 Sided | Cable End Type | Tapered |
| Actuator Material | Polyphenylene Sulfide (PPS) | Actuator Color | - |
