0526101633

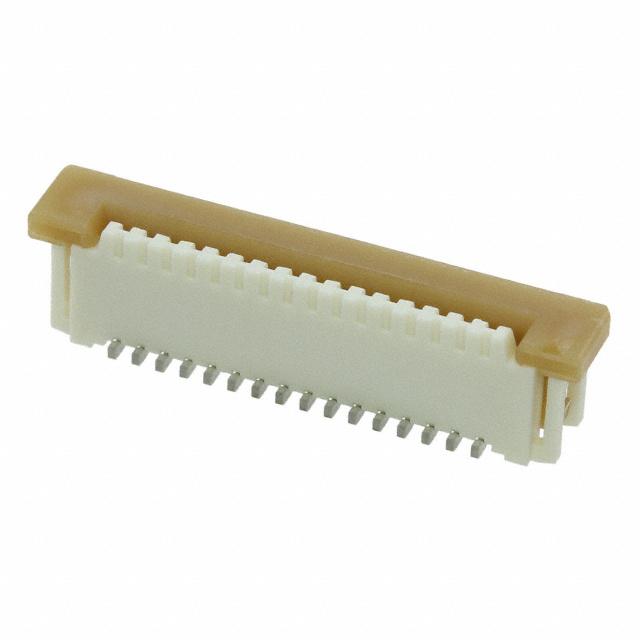

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0526101633 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0526101633 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0526101633 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN FPC VERT 16POS 1.00MM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 2000 pcs | 3000 pcs | 5000 pcs | 10000 pcs |
|---|---|---|---|---|---|
| $0.374 | $0.361 | $0.349 | $0.331 | $0.324 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 0526101633 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN FPC VERT 16POS 1.00MM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 65897 pcs | Data sheet | 52610-xx33 Spec Sheet052610xx33 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 125V |
| Termination | Solder | Series | Easy-On 52610 |
| Pitch | 0.039" (1.00mm) | Packaging | Tape & Reel (TR) |
| Other Names | 0052610-1633 052610-1633 0526101633-ND 52610-1633 526101633 WM11009TR |
Operating Temperature | -40°C ~ 85°C |
| Number of Positions | 16 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 30 |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 8 Weeks |
| Locking Feature | Slide Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyamide (PA), Nylon, Glass Filled | Housing Color | White |
| Height Above Board | 0.226" (5.74mm) | Flat Flex Type | FPC |
| Features | Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 16 Position FPC Connector Contacts, Vertical, 1 Sided 0.039" (1.00mm) Surface Mount | Current Rating | 1A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 39.4µin (1.00µm) |
| Contact Finish | Tin Bismuth | Connector/Contact Type | Contacts, Vertical, 1 Sided |
| Cable End Type | Tapered | Actuator Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Actuator Color | Brown |
