0524652271

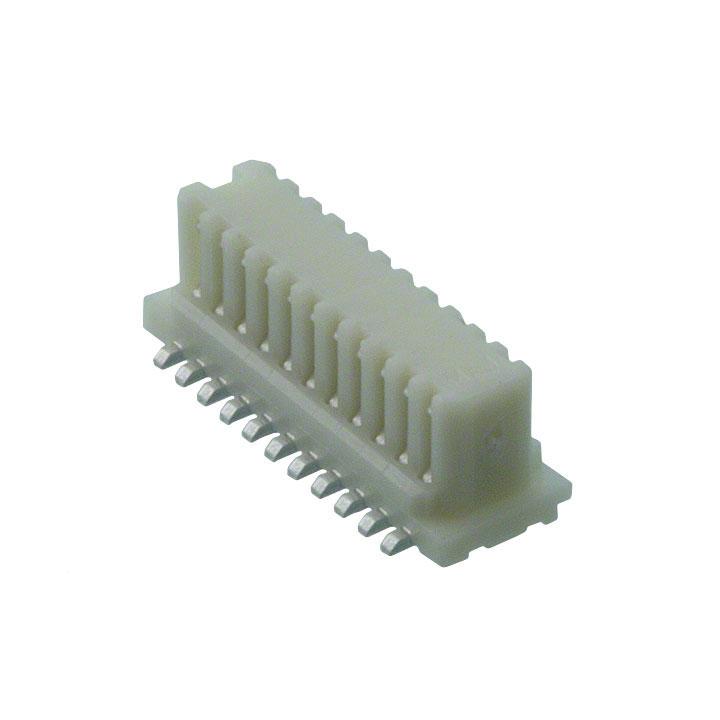

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0524652271 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0524652271 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0524652271 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN RECEPT 22POS .80MM DUAL SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 250 pcs | 500 pcs | 750 pcs | ||
|---|---|---|---|---|---|
| $1.062 | $1.031 | $0.94 | |||
| 1250 pcs | 1750 pcs | 2500 pcs | |||
| $0.88 | $0.849 | $0.819 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0524652271 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN RECEPT 22POS .80MM DUAL SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 36921 pcs | Data sheet | 52465-xx(71,29) Drawing52465, 53309 Product Spec52465 Series Drawing52465 Series Spec |
| Category | Connectors, Interconnects | Series | 52465 |
| Pitch | 0.031" (0.80mm) | Packaging | Tape & Reel (TR) |
| Other Names | 052465-2271 52465-2271 52465-2271-TR250 524652271 WM8951TR |
Number of Rows | 2 |
| Number of Positions | 22 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mated Stacking Heights | 4.5mm, 5.65mm, 7mm |
| Manufacturer Standard Lead Time | 24 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | 0.140" (3.55mm) | Features | - |
| Detailed Description | 22 Position Connector Receptacle, Center Strip Contacts Surface Mount Tin | Contact Finish Thickness | 120.0µin (3.05µm) |
| Contact Finish | Tin | Connector Type | Receptacle, Center Strip Contacts |
