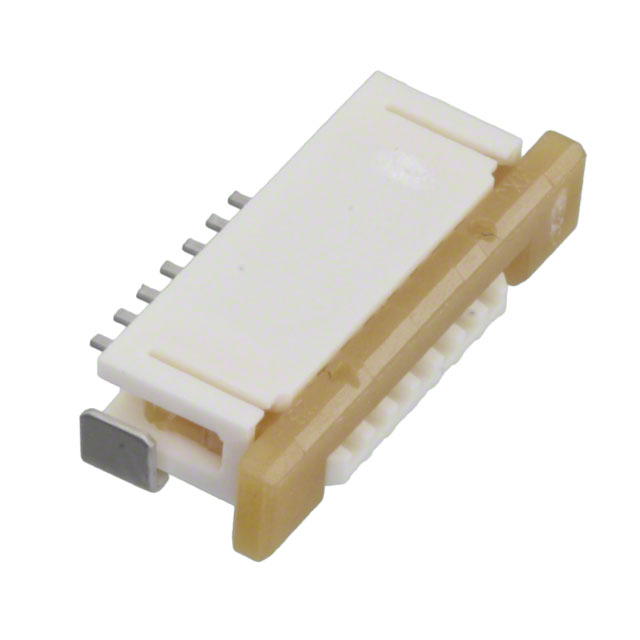

0522710779
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0522710779 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0522710779 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0522710779 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN FPC BOTTOM 7POS 1.00MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 2000 pcs | 3000 pcs | ||
|---|---|---|---|---|---|
| $0.174 | $0.163 | $0.158 | |||
| 5000 pcs | 10000 pcs | 25000 pcs | |||
| $0.152 | $0.145 | $0.142 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0522710779 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN FPC BOTTOM 7POS 1.00MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 165140 pcs | Data sheet | 52271 |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | 52271 |
| Pitch | 0.039" (1.00mm) | Packaging | Tape & Reel (TR) |
| Other Names | 052271-0779 052271-0779-C 0522710779-C 52271-0779 52271-0779-C 522710779 522710779-C WM7956TR |
Operating Temperature | -40°C ~ 85°C |
| Number of Positions | 7 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 30 |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 10 Weeks |
| Locking Feature | Slide Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyamide (PA46), Nylon 4/6 | Housing Color | - |
| Height Above Board | 0.118" (3.00mm) | Flat Flex Type | FPC |
| Features | Solder Retention, Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 7 Position FPC Connector Contacts, Bottom 0.039" (1.00mm) Surface Mount, Right Angle | Current Rating | 0.5A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 39.4µin (1.00µm) |
| Contact Finish | Tin Bismuth | Connector/Contact Type | Contacts, Bottom |
| Cable End Type | Tapered | Actuator Material | Polyphenylene Sulfide (PPS) |
| Actuator Color | - |
