0520453245

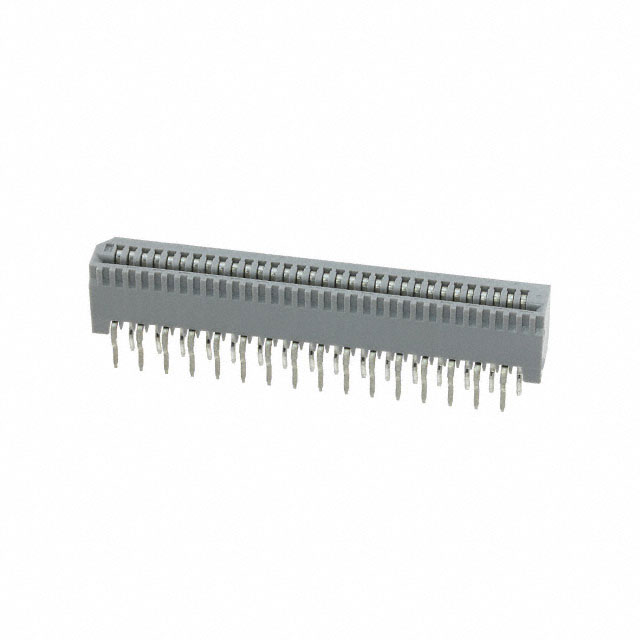

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0520453245 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0520453245 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0520453245 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN FFC VERT 32POS 1.25MM PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.471 | $0.412 | $0.388 | $0.372 | $0.356 | |
| 250 pcs | 630 pcs | 1260 pcs | 2520 pcs | ||
| $0.323 | $0.291 | $0.259 | $0.234 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0520453245 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN FFC VERT 32POS 1.25MM PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 101544 pcs | Data sheet | 520453245 |
| Category | Connectors, Interconnects | Voltage Rating | 200V |
| Termination | Kinked Pin | Series | 52045 |
| Pitch | 0.049" (1.25mm) | Packaging | Tray |
| Other Names | 052045-3245 0520453245-ND 52045-3245 520453245 WM14639 |
Operating Temperature | -40°C ~ 85°C |
| Number of Positions | 32 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 10 Weeks |
| Locking Feature | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polybutylene Terephthalate (PBT), Polyester | Housing Color | Gray |
| Height Above Board | 0.315" (8.00mm) | Flat Flex Type | FFC, FPC |
| Features | - | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 32 Position FFC, FPC Connector Contacts, Vertical, 1 Sided 0.049" (1.25mm) Through Hole | Current Rating | 1A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 35.4µin (0.90µm) |
| Contact Finish | Tin | Connector/Contact Type | Contacts, Vertical, 1 Sided |
| Cable End Type | Straight | Actuator Material | - |
| Actuator Color | - |
