0520440645

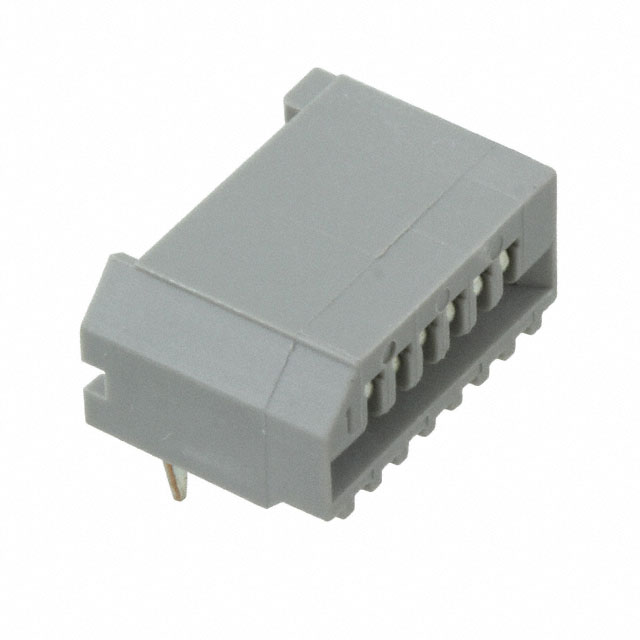

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0520440645 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0520440645 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0520440645 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN FFC FPC TOP 6POS 1.25MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.127 | $0.12 | $0.103 | $0.087 | $0.084 | |
| 250 pcs | 500 pcs | 1300 pcs | 2600 pcs | ||
| $0.075 | $0.072 | $0.06 | $0.055 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0520440645 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN FFC FPC TOP 6POS 1.25MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 375926 pcs | Data sheet | 520440645 |
| Category | Connectors, Interconnects | Voltage Rating | 200V |
| Termination | Kinked Pin | Series | 52044 |
| Pitch | 0.049" (1.25mm) | Packaging | Tray |
| Other Names | 052044-0645 0520440645-ND 52044-0645 520440645 WM14626 |
Operating Temperature | -40°C ~ 85°C |
| Number of Positions | 6 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 9 Weeks |
| Locking Feature | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polybutylene Terephthalate (PBT), Polyester | Housing Color | Gray |
| Height Above Board | 0.197" (5.00mm) | Flat Flex Type | FFC, FPC |
| Features | - | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 6 Position FFC, FPC Connector Contacts, Top 0.049" (1.25mm) Through Hole, Right Angle | Current Rating | 1A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 35.4µin (0.90µm) |
| Contact Finish | Tin | Connector/Contact Type | Contacts, Top |
| Cable End Type | Straight | Actuator Material | - |
| Actuator Color | - |
