0512810994

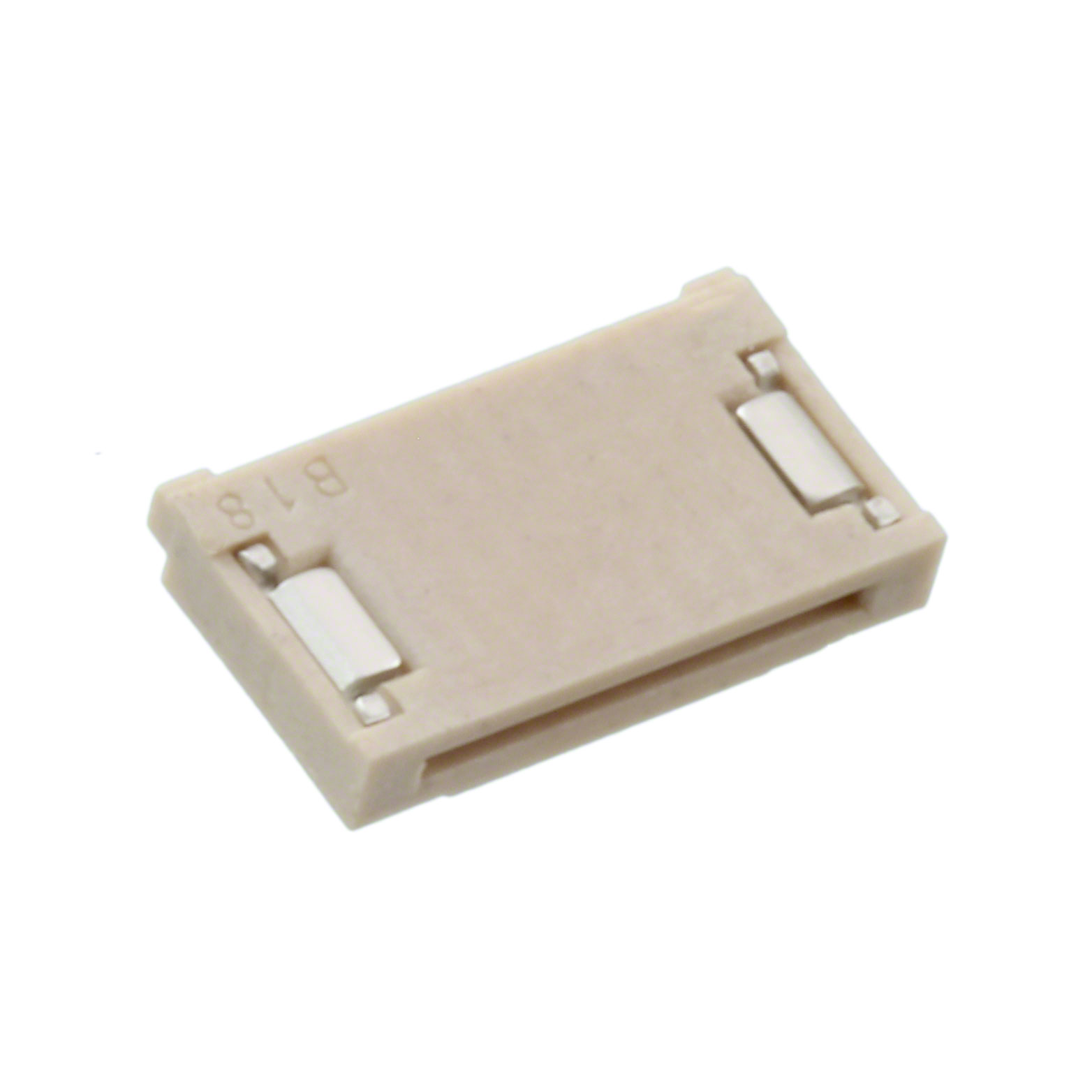

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0512810994 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0512810994 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0512810994 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN FFC FPC 9POS 0.50MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.273 | $0.257 | $0.231 | $0.206 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $0.197 | $0.18 | $0.171 | $0.141 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0512810994 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN FFC FPC 9POS 0.50MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 169274 pcs | Data sheet | 51281xx94 Drawing512810794 Pkg Spec |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | 51281 |
| Pitch | 0.020" (0.50mm) | Packaging | Cut Tape (CT) |
| Other Names | WM10923CT | Operating Temperature | -20°C ~ 85°C |
| Number of Positions | 9 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 20 |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 4 Weeks |
| Locking Feature | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled | Housing Color | - |
| Height Above Board | 0.047" (1.20mm) | Flat Flex Type | FFC, FPC |
| Features | Solder Retention | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 9 Position FFC, FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle | Current Rating | 0.5A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 3.90µin (0.099µm) |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Top and Bottom |
| Cable End Type | Straight, Tapered | Actuator Material | - |
| Actuator Color | - |
