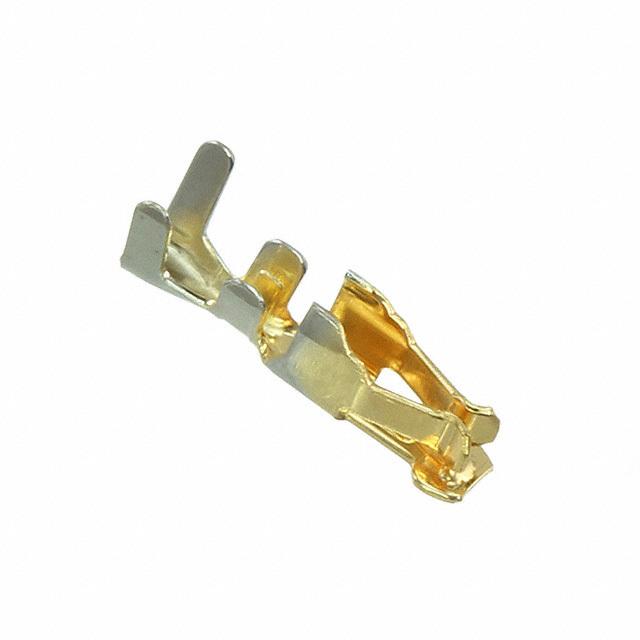

0503948200
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0503948200 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0503948200 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0503948200 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN TERM FEMALE 24-30AWG 30GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.07 | $0.065 | $0.056 | $0.049 | $0.045 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.04 | $0.038 | $0.031 | $0.029 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0503948200 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN TERM FEMALE 24-30AWG 30GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 840404 pcs | Data sheet | 503948yyy Drawing |
| Category | Connectors, Interconnects | Wire Gauge | 24-30 AWG |
| Type | - | Series | Milli-Grid 50394 |
| Pin or Socket | Socket | Packaging | Bulk |
| Other Names | 050394-8200 050394-8200-E 0503948200-E 50394-8200 50394-8200-E 503948200 503948200-E WM2139 |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | Socket Contact Gold 24-30 AWG Crimp | Contact Termination | Crimp |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
