05016162575

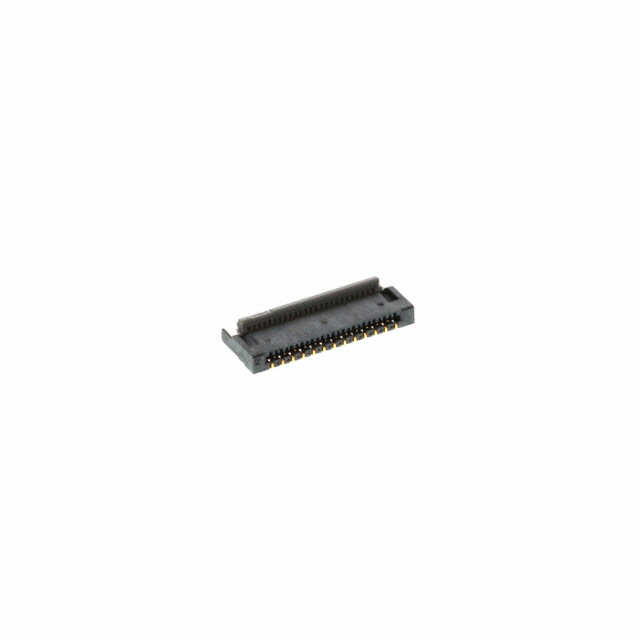

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 05016162575 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 05016162575 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 05016162575 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN FPC TOP 25POS 0.30MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.653 | $0.591 | $0.555 | $0.531 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $0.507 | $0.458 | $0.422 | $0.362 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 05016162575 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN FPC TOP 25POS 0.30MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 64808 pcs | Data sheet | 501616-2575 |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | Easy-On 501616 |
| Pitch | 0.012" (0.30mm) | Packaging | Cut Tape (CT) |
| Other Names | WM2201 WM2201-ND WM2201CT |
Operating Temperature | -40°C ~ 85°C |
| Number of Positions | 25 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 10 |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 10 Weeks |
| Locking Feature | Flip Lock, Backlock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polymer | Housing Color | Black |
| Height Above Board | 0.044" (1.12mm) | Flat Flex Type | FPC |
| Features | Solder Retention, Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.20mm |
| Detailed Description | 25 Position FPC Connector Contacts, Top 0.012" (0.30mm) Surface Mount, Right Angle | Current Rating | 0.2A |
| Contact Material | Copper Alloy | Contact Finish Thickness | - |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Top |
| Cable End Type | Tapered | Actuator Material | Polymer |
| Actuator Color | Gray |
