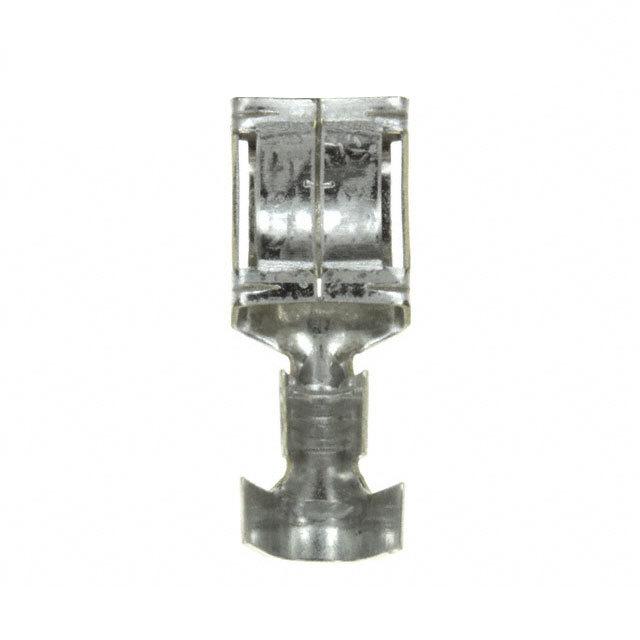

05-06-0301
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 05-06-0301 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 05-06-0301 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 05-06-0301 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN QC RCPT 14-22AWG 0.187 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | 6000 pcs | 9000 pcs | ||
|---|---|---|---|---|---|
| $0.025 | $0.024 | $0.023 | |||
| 15000 pcs | 30000 pcs | 75000 pcs | |||
| $0.021 | $0.019 | $0.018 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 05-06-0301 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN QC RCPT 14-22AWG 0.187 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1361348 pcs | Data sheet | 05-06-030x |
| Category | Connectors, Interconnects | Wire Gauge | 14-22 AWG |
| Termination | Crimp | Terminal Type | Flat Blade |
| Tab Width | 0.187" (4.75mm) | Tab Thickness | 0.020" (0.51mm) |
| Tab Length | 0.275" (6.99mm) | Series | 2176 |
| Packaging | Tape & Reel (TR) | Other Names | 0005-06-0301 0005-06-0301-C 0005060301 0005060301-C 05-06-0301-C 05060301 05060301-C 2176-T 5060301 WM2684TR |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 5 Weeks | Length - Overall | 0.630" (16.00mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Diameter | 0.031" (0.79mm) |
| Insulation | Non-Insulated | Gender | Female |
| Features | - | Detailed Description | 0.187" (4.75mm) Quick Connect Female 14-22 AWG Crimp Connector Non-Insulated |
| Contact Material | Brass | Contact Finish | Tin |
| Color | - |
