0490450011

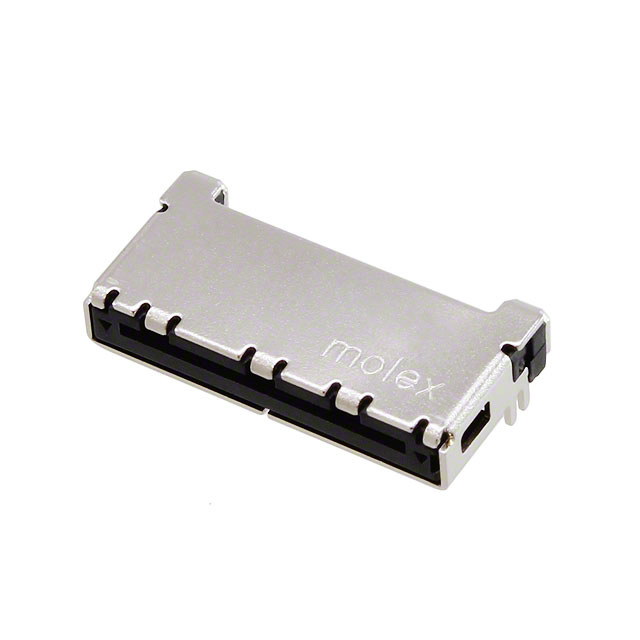

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0490450011 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0490450011 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0490450011 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | RCPT 0.5MM SHUTTER I/O 24POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0490450011 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | RCPT 0.5MM SHUTTER I/O 24POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5617 pcs | Data sheet | 0490450011 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Series | 49045 | Row Spacing - Mating | - |
| Pitch - Mating | 0.020" (0.50mm) | Packaging | Tape & Reel (TR) |
| Other Names | 0490-45-0011 049045-0011 0490450011-ND 490-45-0011 49045-0011 490450011 WM9733TR |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 24 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA), Nylon | Insulation Height | 0.118" (3.00mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Shielded, Shutter | Fastening Type | Detent Lock |
| Detailed Description | 24 Position Receptacle Connector 0.020" (0.50mm) Surface Mount, Right Angle Gold | Current Rating | - |
| Contact Type | - | Contact Shape | - |
| Contact Material | Copper Alloy | Contact Length - Post | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
