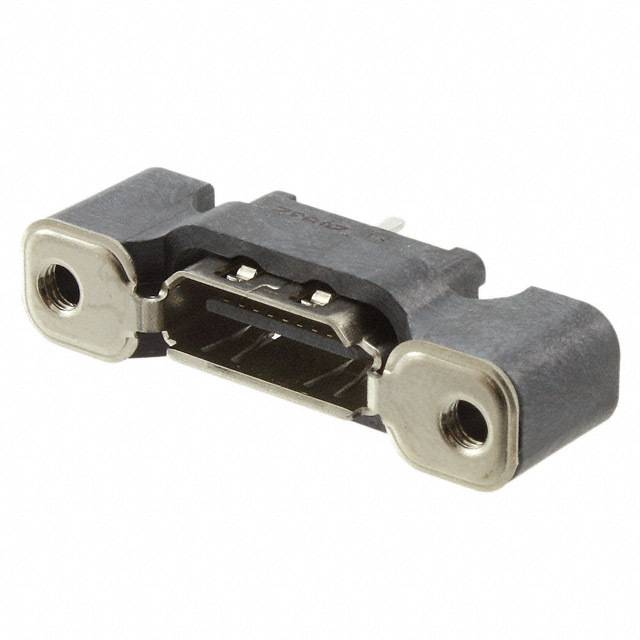

0483077022
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0483077022 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0483077022 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0483077022 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN RCPT 19POS HDMI VERT SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 150 pcs | 300 pcs | 750 pcs | 1050 pcs | 1500 pcs |
|---|---|---|---|---|---|
| $0.94 | $0.822 | $0.728 | $0.681 | $0.658 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 0483077022 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN RCPT 19POS HDMI VERT SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 46030 pcs | Data sheet | 0483077022 DrawingHDMI Vertical Conn Prod Spec |
| Category | Connectors, Interconnects | Voltage - Rated | 40VAC |
| Termination | Solder | Specifications | - |
| Shielding | Shielded | Shell/Shielding Material | Copper Alloy |
| Series | 48307 | Packaging | Tape & Reel (TR) |
| Other Names | 048307-7022 48307-7022 483077022 WM7088TR |
Operating Temperature | -20°C ~ 85°C |
| Number of Ports | 1 | Number of Contacts | 21 (19+2 Dummy) |
| Mounting Type | Surface Mount, Through Hole | Mounting Feature | Flange, Vertical |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Material Flammability Rating | UL94 V-0 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Color | - | Ingress Protection | - |
| Gender | Receptacle | Features | Pick and Place |
| Detailed Description | HDMI Receptacle Connector 21 (19+2 Dummy) Position Surface Mount, Through Hole | Current Rating | 0.5A |
| Contact Finish | Gold | Connector Type | HDMI |
