0480254000

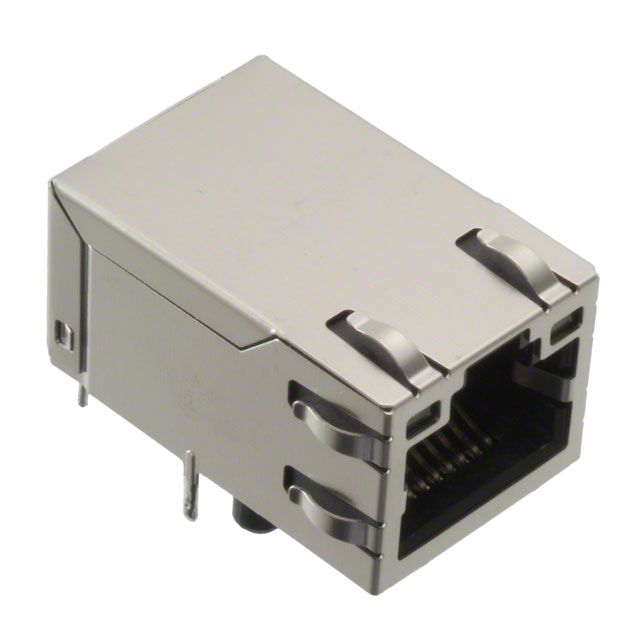

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0480254000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0480254000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0480254000 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN MAGJACK 1PORT 100 BASE-T |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.292 | $2.196 | $2.005 | $1.91 | ||
| 100 pcs | 250 pcs | 500 pcs | 1080 pcs | ||
| $1.814 | $1.623 | $1.528 | $1.337 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0480254000 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN MAGJACK 1PORT 100 BASE-T | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 22673 pcs | Data sheet | Modular Jacks Brochure48025-4000 |
| Category | Connectors, Interconnects | Termination | Solder |
| Tab Direction | Up | Shielding | Shielded, EMI Finger |
| Shield Material | Brass | Series | 48025 |
| Packaging | Tray | Other Names | 048025-4000 048025-4000-E 0480254000-E 48025-4000 48025-4000-E 480254000 480254000-E WM5485 |
| Orientation | 90° Angle (Right) | Operating Temperature | - |
| Number of Rows | 1 | Number of Ports | 1 |
| Number of Cores per Jack | 4 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | LED Color | Green - Yellow |
| Housing Material | Polyamide (PA), Nylon | Height Above Board | 0.524" (13.31mm) |
| Features | Board Guide | Detailed Description | 1 Port RJ45 Magjack Connector Through Hole 10/100 Base-T, AutoMDIX |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 50.0µin (1.27µm) |
| Contact Finish | Gold | Connector Type | RJ45 |
| Applications | 10/100 Base-T, AutoMDIX |
