0479501001

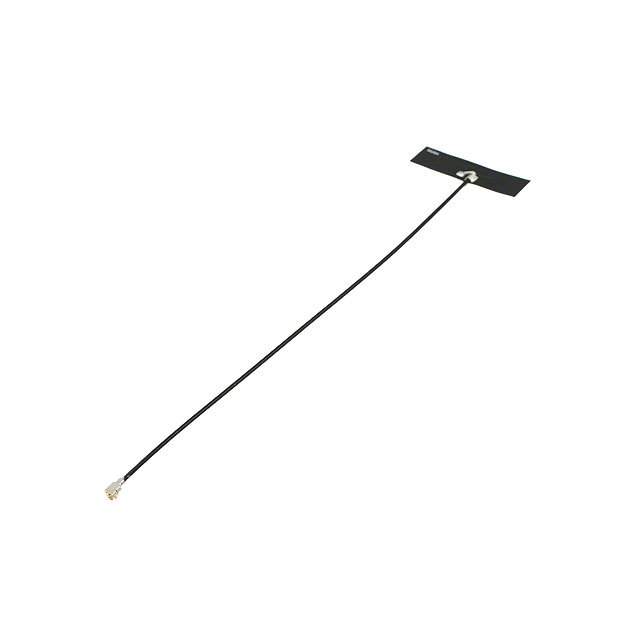

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0479501001 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0479501001 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0479501001 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | RF ANT 2.4/5GHZ PCB TRC CAB .34" |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $1.01 | $0.912 | $0.815 | $0.733 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $0.652 | $0.57 | $0.472 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0479501001 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | RF ANT 2.4/5GHZ PCB TRC CAB .34" | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 67349 pcs | Data sheet | 0479501001 Drawing146153 Series Datasheet47950 Series Prod Spec |
| Category | RF/IF and RFID | VSWR | - |
| Termination | Cable (150mm) - SMT Male | Series | 47950 |
| Return Loss | -10dB, -9dB | Power - Max | 2W |
| Packaging | Tray | Other Names | 047950-1001 47950-1001 479501001 WM5029 |
| Number of Bands | 2 | Mounting Type | Adhesive |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Height (Max) | 0.004" (0.10mm) |
| Gain | 3dBi, 2.7dBi, 3.7dBi | Frequency Range | 2.4GHz ~ 2.483.5GHz, 4.8GHz ~ 5.9GHz |
| Frequency Group | UHF (2 GHz ~ 3 GHz), SHF (f > 4 GHz) | Frequency (Center/Band) | 2.4GHz, 5GHz |
| Features | - | Detailed Description | 2.4GHz, 5GHz Bluetooth, WLAN, Zigbee™ PCB Trace RF Antenna 2.4GHz ~ 2.483.5GHz, 4.8GHz ~ 5.9GHz 3dBi, 2.7dBi, 3.7dBi Cable (150mm) - SMT Male Adhesive |
| Applications | Bluetooth, WLAN, Zigbee™ | Antenna Type | PCB Trace |
