0477450100

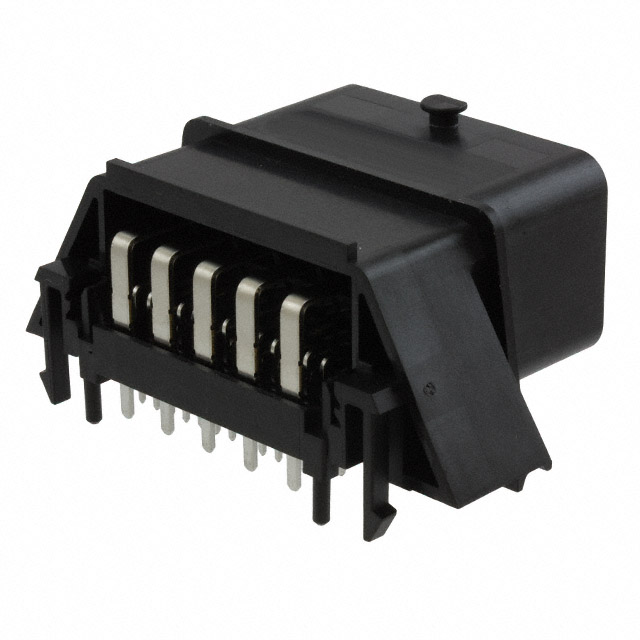

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0477450100 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0477450100 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0477450100 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN CMC HEADER 28POS R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $5.597 | $5.088 | $4.325 | $3.689 | $3.384 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 0477450100 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN CMC HEADER 28POS R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10976 pcs | Data sheet | 0477450x00 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | CMC 47745 |
| Row Spacing - Mating | - | Pitch - Mating | - |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 47745-0100 477450100 WM9447 |
Operating Temperature | - |
| Number of Rows | 3 | Number of Positions Loaded | All |
| Number of Positions | 28 | Mounting Type | Board Edge, Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation Height | 1.102" (27.99mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide, Board Lock, Mounting Flange |
| Fastening Type | Latch Lock | Detailed Description | Connector Header Board Edge, Through Hole, Right Angle 28 position |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | - | Contact Material | Brass |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive |
