0475940001

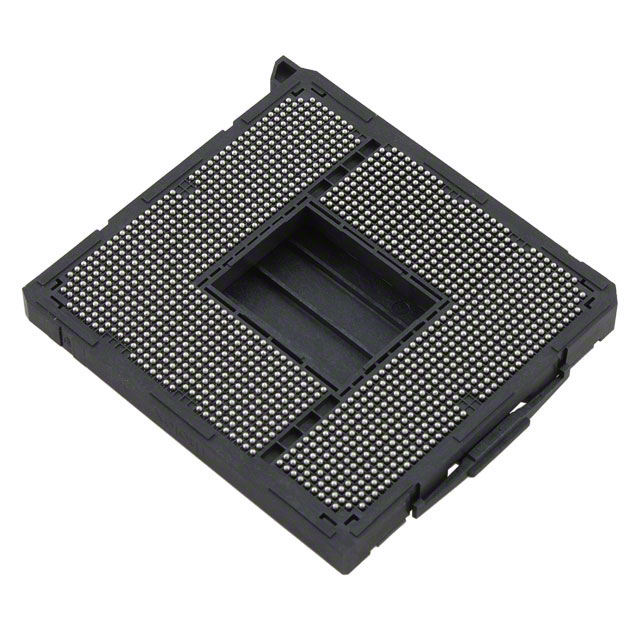

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0475940001 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0475940001 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0475940001 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN SOCKET LGA 1366POS GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0475940001 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN SOCKET LGA 1366POS GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4336 pcs | Data sheet | 0475940001,2 Drawing |
| Category | Connectors, Interconnects | Type | LGA |
| Termination Post Length | - | Termination | Solder |
| Series | 47594 | Pitch - Post | 0.040" (1.01mm) |
| Pitch - Mating | 0.040" (1.02mm) | Packaging | Tray |
| Other Names | 047594-0001 47594-0001 475940001 WM7547 |
Operating Temperature | - |
| Number of Positions or Pins (Grid) | 1366 (32 x 41) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Liquid Crystal Polymer (LCP) |
| Features | Open Frame | Contact Resistance | - |
| Contact Material - Post | - | Contact Material - Mating | Copper Alloy |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
