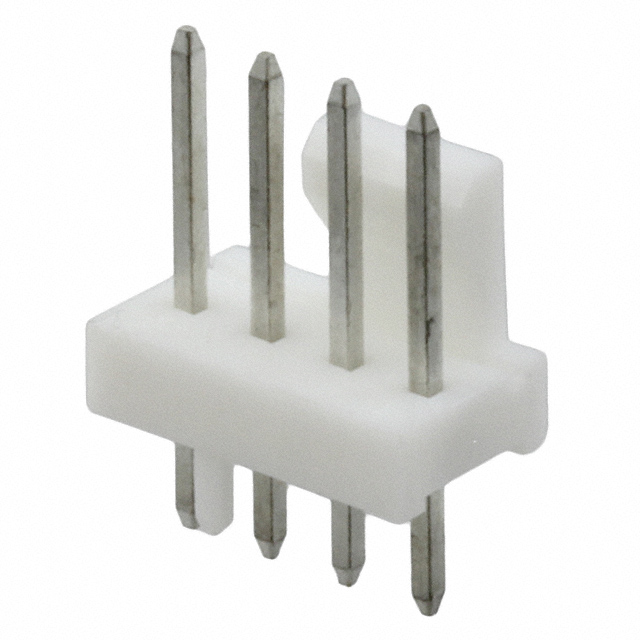

0470533000
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0470533000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0470533000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0470533000 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | 4 PIN HEADER WITH FRICTION LOCK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.155 | $0.147 | $0.112 | $0.098 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.081 | $0.071 | $0.066 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0470533000 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | 4 PIN HEADER WITH FRICTION LOCK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 349099 pcs | Data sheet | 4705330000470533000 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 1 Wall | Series | KK 47053 |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | 0.545" (13.84mm) |
| Other Names | 047053-3000 0470533000-ND 47053-3000 470533000 WM9797 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.295" (7.50mm) | Insulation Color | Ivory |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Friction Lock | Detailed Description | Connector Header Through Hole 4 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.157" (4.00mm) | Contact Length - Mating | 0.289" (7.34mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive, General Purpose, Medical, Telecommunications |
