0466220400

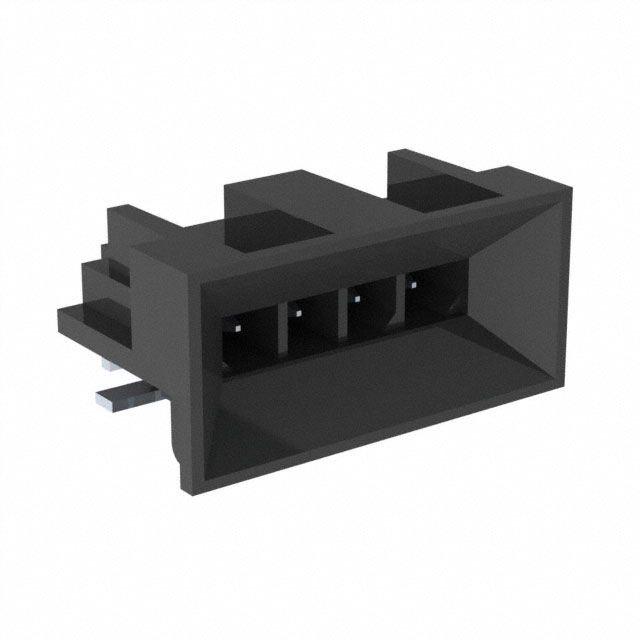

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0466220400 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0466220400 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0466220400 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | OFIT BMI SR RA SMT NAIL 60SN 4CK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 230 pcs | 460 pcs | 690 pcs | 1150 pcs | |
|---|---|---|---|---|---|
| $0.451 | $0.408 | $0.376 | $0.322 | ||
| 1610 pcs | 5750 pcs | 11500 pcs | |||
| $0.311 | $0.286 | $0.279 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0466220400 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | OFIT BMI SR RA SMT NAIL 60SN 4CK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 73217 pcs | Data sheet | 046622 Series DrawingMicro-Fit 3.0™ Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Micro-Fit 3.0 BMI 46622 |
| Row Spacing - Mating | - | Pitch - Mating | 0.118" (3.00mm) |
| Packaging | Tape & Reel (TR) | Overall Contact Length | - |
| Other Names | 046622-0400 46622-0400 466220400 WM16960TR |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Insulation Height | 0.350" (8.89mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount, Right Angle 4 position 0.118" (3.00mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass Alloy |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 60.0µin (1.52µm) | Contact Finish Thickness - Mating | 60.0µin (1.52µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive, General Purpose, Medical, Telecommunications |
