0460150802

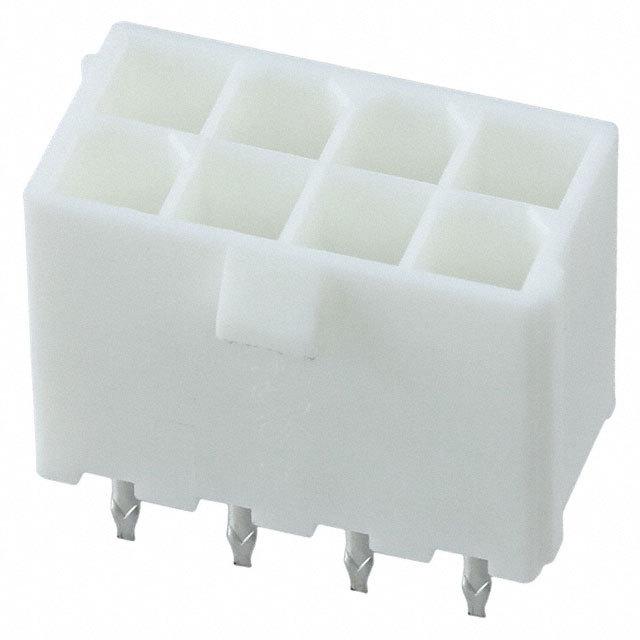

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0460150802 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0460150802 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0460150802 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | MF+ HCS VERT HDR DR 8CKT V-0 TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.608 | $0.55 | $0.471 | |||
| 500 pcs | 4080 pcs | 8160 pcs | |||
| $0.393 | $0.314 | $0.292 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0460150802 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | MF+ HCS VERT HDR DR 8CKT V-0 TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 78697 pcs | Data sheet | 0460150802 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Mini-Fit Plus HCS 46015 |
| Row Spacing - Mating | 0.165" (4.20mm) | Pitch - Mating | 0.165" (4.20mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 0460-15-0802 046015-0802 0460150802-ND 46015-0802 460150802 WM14616 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 8 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Insulation Height | 0.504" (12.80mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | - |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole 8 position 0.165" (4.20mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.138" (3.50mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
