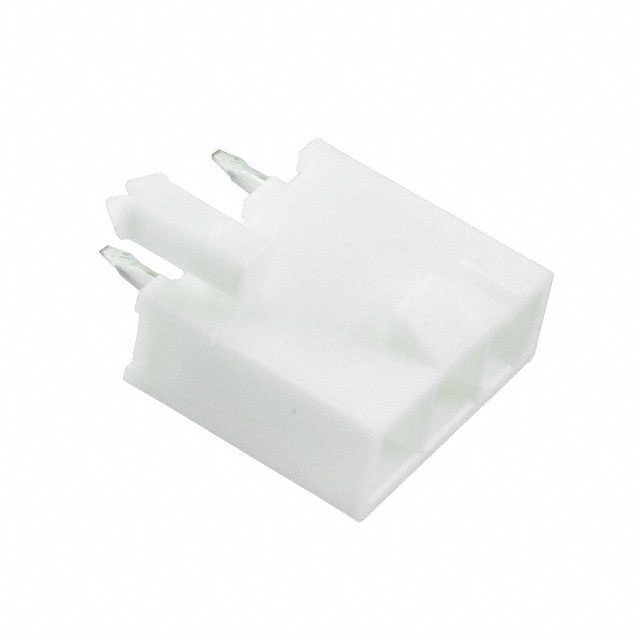

0460140304
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0460140304 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0460140304 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0460140304 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | MF+ HCS VERT HDR ASY SR 3CKT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.37 | $0.327 | $0.282 | $0.231 | ||
| 1518 pcs | 6072 pcs | 10626 pcs | |||
| $0.192 | $0.18 | $0.171 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0460140304 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | MF+ HCS VERT HDR ASY SR 3CKT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 137113 pcs | Data sheet | 0460140304 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Mini-Fit Plus HCS 46014 |
| Row Spacing - Mating | - | Pitch - Mating | 0.165" (4.20mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 0460-14-0304 046014-0304 0460140304-ND 46014-0304 460140304 WM14609 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 3 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Insulation Height | 0.490" (12.44mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Board Lock |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole 3 position 0.165" (4.20mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.138" (3.50mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
