0460111401

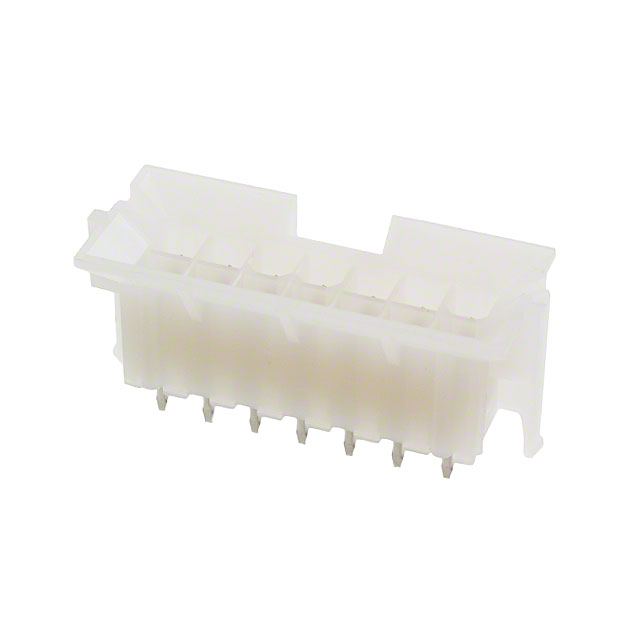

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0460111401 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0460111401 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0460111401 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN VERT BMI HDR ASY GOLD HCS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 320 pcs | 640 pcs | 1280 pcs |
|---|---|---|---|---|---|
| $1.463 | $1.404 | $1.024 | $0.995 | $0.848 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 0460111401 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN VERT BMI HDR ASY GOLD HCS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 42539 pcs | Data sheet | Mini-Fit Plus HCS Product Spec46011-xx0x Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Mini-Fit Plus HCS 46011 |
| Row Spacing - Mating | 0.165" (4.20mm) | Pitch - Mating | 0.165" (4.20mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 046011-1401 46011-1401 460111401 WM5399 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 14 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-2 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Insulation Height | 0.555" (14.10mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Board Lock |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole 14 position 0.165" (4.20mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.138" (3.50mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
