0459854422

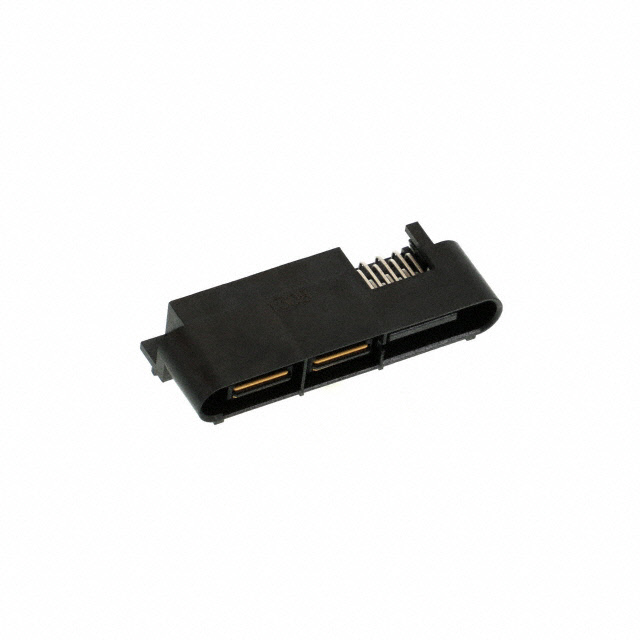

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0459854422 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0459854422 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0459854422 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HEADER 4 PWR 16SGL 2.36MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.294 | $3.904 | $3.806 | $3.513 | ||
| 140 pcs | 280 pcs | 560 pcs | 1120 pcs | ||
| $3.318 | $3.025 | $2.83 | $2.596 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0459854422 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER 4 PWR 16SGL 2.36MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12626 pcs | Data sheet | 45985-4yyy Drawing45984-001 Prod Spec45984-001 Pkg Spec |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Series | EXTreme LPHPower 45985 |
| Pitch | 0.050" (1.27mm) | Packaging | Tray |
| Other Names | 045985-4422 0459854422-ND 45985-4422 459854422 WM20215 |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 20 | Number of Columns | - |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Board Guide, Mating Guide |
| Current Rating | - | Contact Layout, Typical | 16 Signal, 4 Power |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Connector Usage | - | Connector Type | Plug, Center Strip Contacts |
| Connector Style | LPHPower | Color | Black |
