0455780001

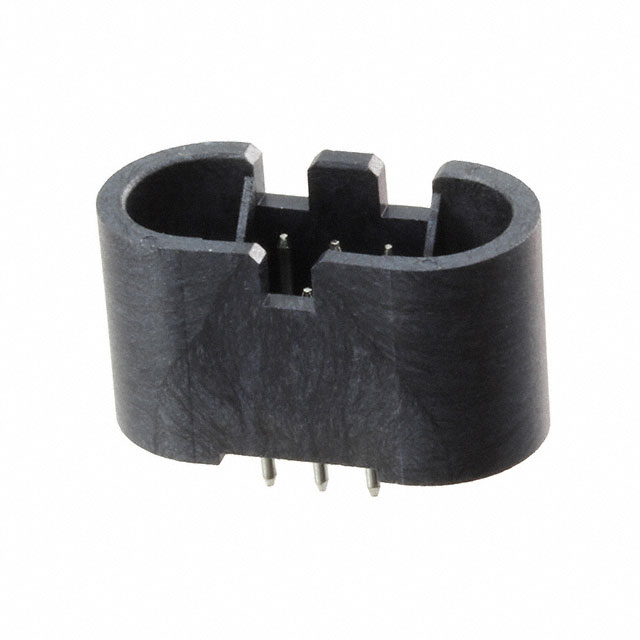

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0455780001 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0455780001 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0455780001 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | SPOX BMI VERT. HEADER 6 PIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.725 | $0.657 | $0.563 | $0.469 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.402 | $0.357 | $0.349 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0455780001 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | SPOX BMI VERT. HEADER 6 PIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 62100 pcs | Data sheet | 455780001,2 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | SPOX BMI 45578 |
| Row Spacing - Mating | 0.181" (4.60mm) | Pitch - Mating | 0.098" (2.50mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 045578-0001 0455780001-ND 45578-0001 455780001 WM13222 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 6 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.443" (11.25mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 6 position 0.098" (2.50mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Brass |
| Contact Length - Post | 0.101" (2.57mm) | Contact Length - Mating | 0.196" (4.97mm) |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose, Telecommunications |
