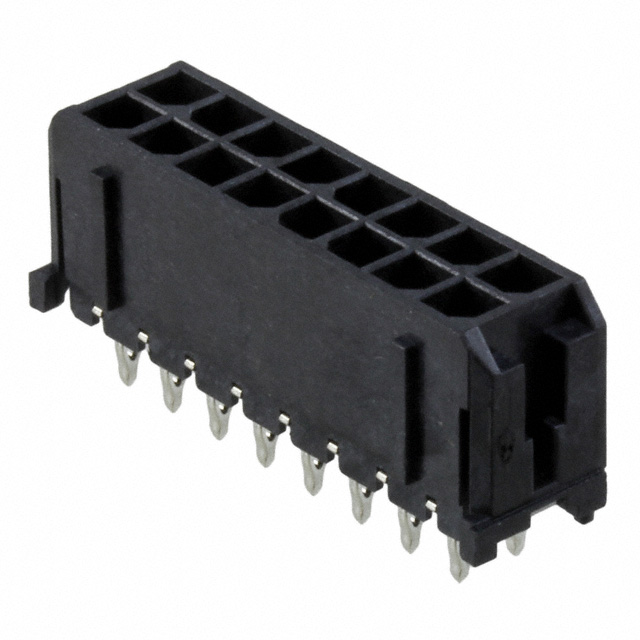

0449141601
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0449141601 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0449141601 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0449141601 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | MICROFIT 3.0 HDR VERT CPI 16CKT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 792 pcs | 1584 pcs |
|---|---|---|---|---|---|
| $1.771 | $1.699 | $1.416 | $1.098 | $0.991 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 0449141601 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | MICROFIT 3.0 HDR VERT CPI 16CKT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 38454 pcs | Data sheet | 044914 DrawingMicro-Fit 3.0™ Datasheet43045 Prod Spec |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Press-Fit, Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Micro-Fit 3.0 CPI 44914 |
| Row Spacing - Mating | 0.118" (3.00mm) | Pitch - Mating | 0.118" (3.00mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 0449-14-1601 044914-1601 0449141601-ND 44914-1601 449141601 WM9300 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 16 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Insulation Height | 0.390" (9.91mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole 16 position 0.118" (3.00mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Modified Tin/Brass Alloy |
| Contact Length - Post | 0.125" (3.18mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 200.0µin (5.08µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose, Medical, Military, Telecommunications |
