0448120016

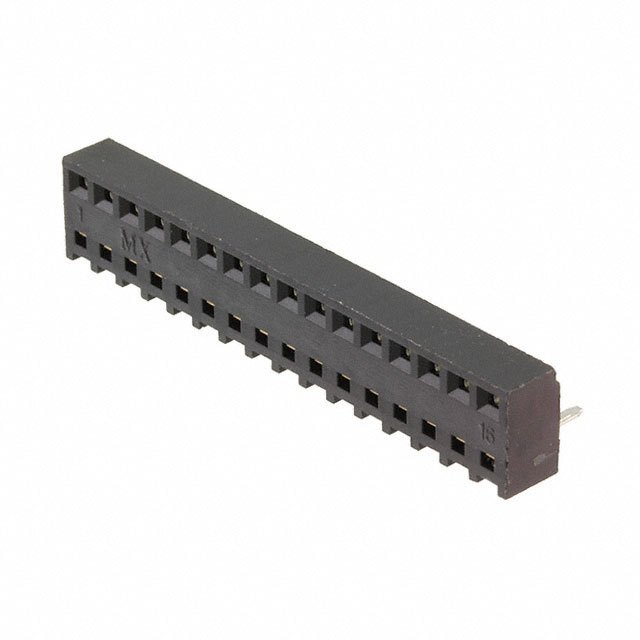

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0448120016 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0448120016 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0448120016 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | KK 100 PCB CONN ASSY LO PRO |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.344 | $1.29 | $1.183 | $1.129 | $1.075 | |
| 250 pcs | 560 pcs | 1120 pcs | 2800 pcs | ||
| $0.941 | $0.914 | $0.779 | $0.726 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0448120016 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | KK 100 PCB CONN ASSY LO PRO | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 47348 pcs | Data sheet | 44812 Series Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250VAC, 176VDC |
| Termination | Solder | Style | Board to Board |
| Series | KK 44812 | Row Spacing - Mating | - |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tray |
| Other Names | 0448-12-0016 044812-0016 0448120016-ND 44812-0016 448120016 WM14603 |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 16 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon, Glass Filled |
| Insulation Height | 0.177" (4.50mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 16 Position Receptacle, Bottom or Top Entry Connector 0.100" (2.54mm) Through Hole Tin |
| Current Rating | - | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Brass Alloy |
| Contact Length - Post | 0.136" (3.46mm) | Contact Finish Thickness - Post | 200.0µin (5.08µm) |
| Contact Finish Thickness - Mating | 200.0µin (5.08µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Receptacle, Bottom or Top Entry |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
