0442420001

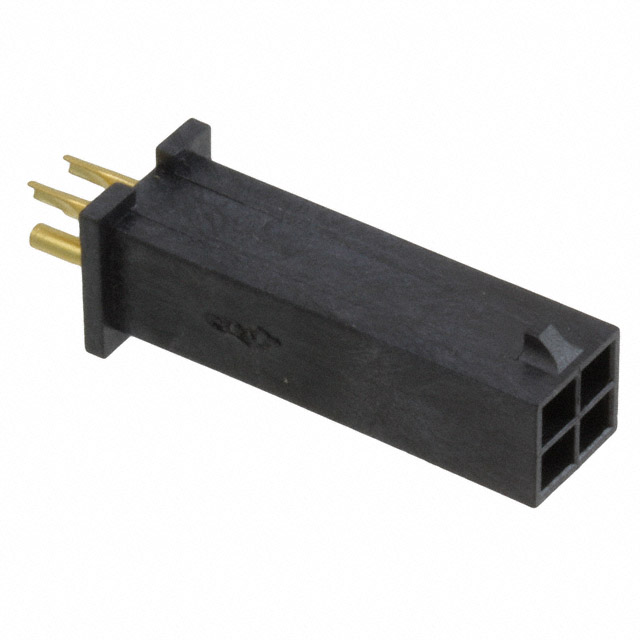

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0442420001 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0442420001 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0442420001 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN MICRO-FIT 3.00MM 4 POS TEST |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $10.962 | $9.897 | $9.482 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $8.889 | $8.593 | $8.119 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0442420001 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN MICRO-FIT 3.00MM 4 POS TEST | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4248 pcs | Data sheet | 43650 Prod Spec44242-00yy Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Micro-Fit 3.0 44242 |
| Row Spacing - Mating | 0.118" (3.00mm) | Pitch - Mating | 0.118" (3.00mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 44242-0001 44242-0001-ND 442420001 Q6236341 T1543741 WM8732 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 1.100" (27.94mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole 4 position 0.118" (3.00mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Beryllium Copper |
| Contact Length - Post | 0.230" (5.84mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Plug | Applications | General Purpose, Medical, Military, Telecommunications |
