0439151403

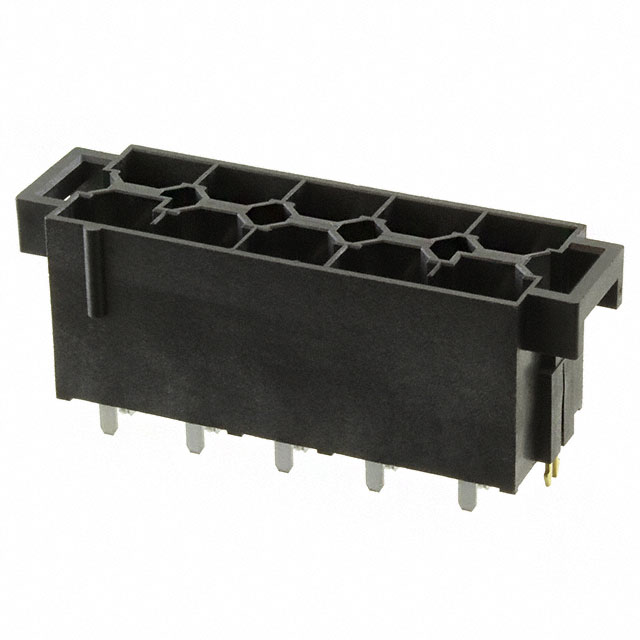

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0439151403 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0439151403 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0439151403 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | VERTICAL HEADER 10CKT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $6.628 | $6.153 | $4.733 | $4.323 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0439151403 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | VERTICAL HEADER 10CKT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7476 pcs | Data sheet | 0439151403 Datasheet42815-001 Series Prod Spec43915-1403 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Mini-Fit Sr 43915 |
| Row Spacing - Mating | - | Pitch - Mating | 0.394" (10.00mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 043915-1403 43915-1403 439151403 WM12390 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Insulation Height | 0.827" (21.00mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide, Board Lock |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole 10 position 0.394" (10.00mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Rectangular | Contact Material | Copper Zirconium Alloy |
| Contact Length - Post | 0.138" (3.50mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Silver |
| Connector Type | Header | Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
