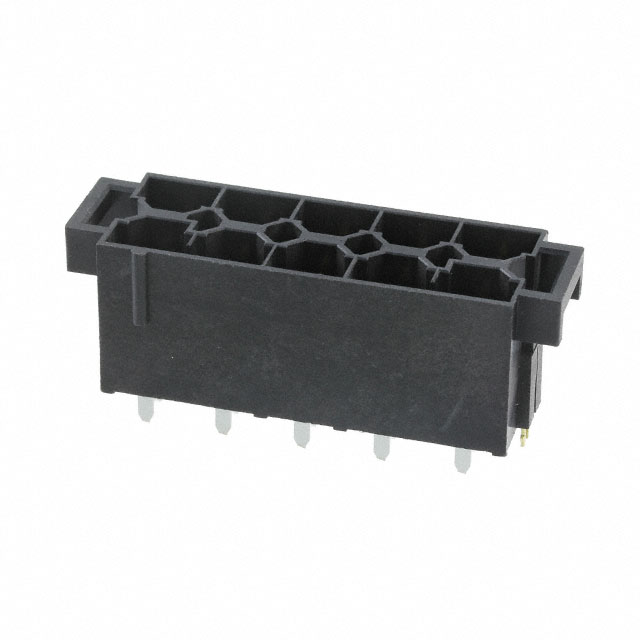

0439151203
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0439151203 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0439151203 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0439151203 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | MF SR HDR ASSY DR 062 VT 10CKT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 140 pcs | ||
|---|---|---|---|---|---|
| $9.399 | $8.484 | $7.367 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0439151203 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | MF SR HDR ASSY DR 062 VT 10CKT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4120 pcs | Data sheet | 0439151203 Drawing42815-001 Series Prod Spec |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Mini-Fit Sr 43915 |
| Row Spacing - Mating | - | Pitch - Mating | 0.394" (10.00mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 0439-15-1203 043915-1203 0439151203-ND 43915-1203 439151203 WM14595 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Insulation Height | 0.827" (21.00mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole 10 position 0.394" (10.00mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Rectangular | Contact Material | Copper Zirconium Alloy |
| Contact Length - Post | 0.138" (3.50mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
