0438790058

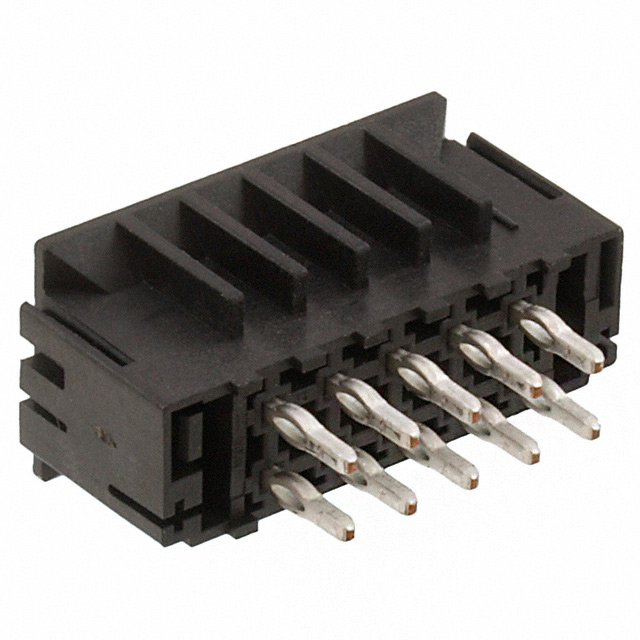

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0438790058 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0438790058 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0438790058 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HEADER 10POS VERT GOLD T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $3.831 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0438790058 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER 10POS VERT GOLD T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9269 pcs | Data sheet | Mini-Fit JR.Connector System Spec43879-00xx Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Press-Fit, Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Mini-Fit BMI/CPI 43879 |
| Row Spacing - Mating | 0.165" (4.20mm) | Pitch - Mating | 0.165" (4.20mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 043879-0058 43879-0058 438790058 WM7505 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon, Glass Filled |
| Insulation Height | 0.587" (14.91mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole 10 position 0.165" (4.20mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.246" (6.25mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | General Purpose, Industrial, Medical, Telecommunications |
