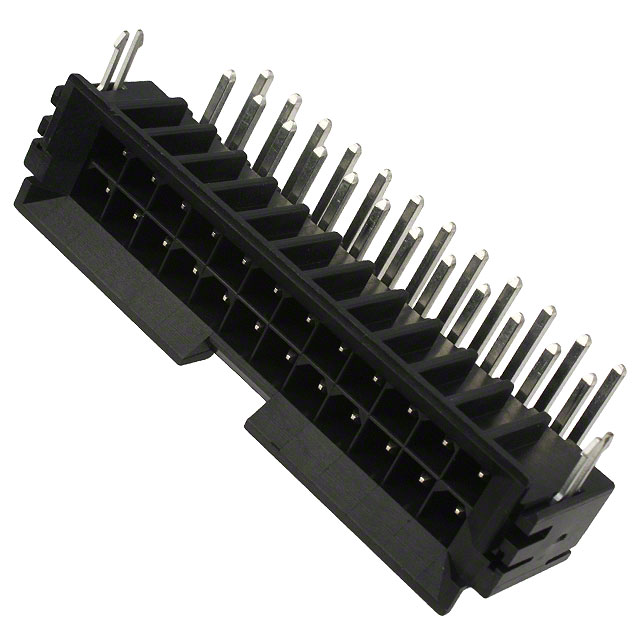

0438100011
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0438100011 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0438100011 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0438100011 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | MF SMC RA HDR W/CLIP TIN 24 CKT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 120 pcs | 600 pcs | 1080 pcs |
|---|---|---|---|---|---|
| $4.028 | $3.853 | $3.24 | $2.715 | $2.399 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 0438100011 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | MF SMC RA HDR W/CLIP TIN 24 CKT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 13042 pcs | Data sheet | 0438100011 DrawingMini-Fit BMI Dual Row Prod Spec |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Mini-Fit BMI SMC 43810 |
| Row Spacing - Mating | 0.165" (4.20mm) | Pitch - Mating | 0.165" (4.20mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 43810-0011 438100011 WM4051 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 24 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Insulation Height | 0.591" (15.00mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Lock |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole, Right Angle 24 position 0.165" (4.20mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.123" (3.12mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose, Industrial, Medical, Telecommunications |
