0436500212

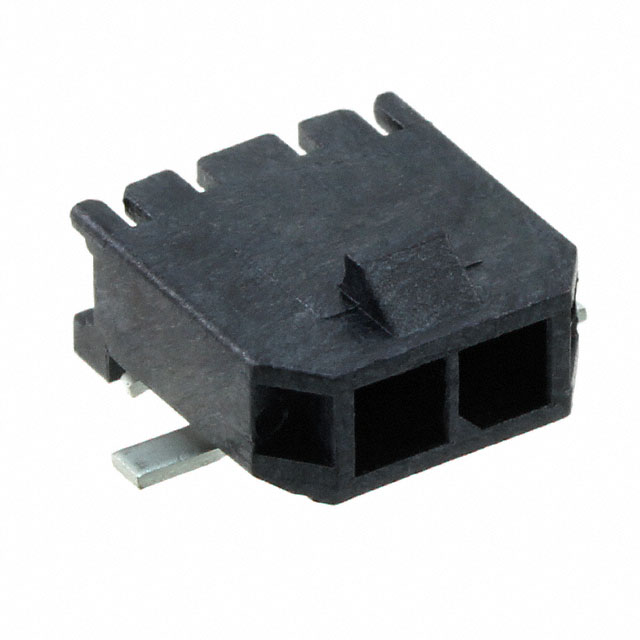

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0436500212 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0436500212 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0436500212 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HEADER 2POS R/A W/NAIL SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 320 pcs | 640 pcs | 960 pcs | ||
|---|---|---|---|---|---|
| $0.502 | $0.462 | $0.449 | |||
| 1600 pcs | 3200 pcs | 8000 pcs | |||
| $0.383 | $0.37 | $0.343 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0436500212 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER 2POS R/A W/NAIL SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 70379 pcs | Data sheet | 43650 Prod Spec43650, 43655 Series Pkg DrawingMicro-Fit 3.0™ Datasheet43650yyyy Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Micro-Fit 3.0 43650 |
| Row Spacing - Mating | - | Pitch - Mating | 0.118" (3.00mm) |
| Packaging | Tape & Reel (TR) | Overall Contact Length | - |
| Other Names | 043650-0212 043650-0212-P 0436500212-P 436-50-0212-P 43650-0212 43650-0212-P 4365001212-P 436500212 WM1890TR |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 2 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 5 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Insulation Height | 0.172" (4.37mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Solder Retention |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Surface Mount, Right Angle 2 position 0.118" (3.00mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 60.0µin (1.52µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose, Medical, Military, Telecommunications |
