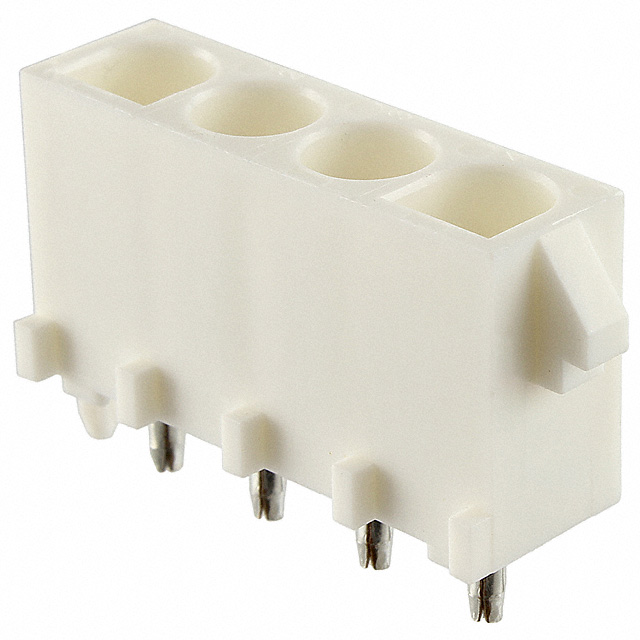

0432550019
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0432550019 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0432550019 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0432550019 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | 0.084 SERIES MLX HEADER 4CKT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.247 | $0.231 | $0.177 | $0.154 | ||
| 1080 pcs | 5400 pcs | 10800 pcs | |||
| $0.127 | $0.111 | $0.104 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0432550019 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | 0.084 SERIES MLX HEADER 4CKT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 184778 pcs | Data sheet | 4325500190432550019 |
| Category | Connectors, Interconnects | Voltage Rating | 600V |
| Termination | Solder | Style | Board to Cable/Wire |
| Series | MLX 43255 | Row Spacing - Mating | - |
| Pitch - Mating | 0.250" (6.35mm) | Packaging | Bulk |
| Other Names | 043255-0019 0432550019-ND 43255-0019 432550019 WM9887 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT) |
| Insulation Height | 0.550" (13.97mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Locking Ramp | Detailed Description | 4 Position Header Connector 0.250" (6.35mm) Through Hole Tin |
| Current Rating | - | Contact Type | Female Socket |
| Contact Shape | Circular | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.169" (4.30mm) | Contact Finish Thickness - Post | 137.8µin (3.50µm) |
| Contact Finish Thickness - Mating | 137.8µin (3.50µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | Automotive, General Purpose, Industrial, Telecommunications |
