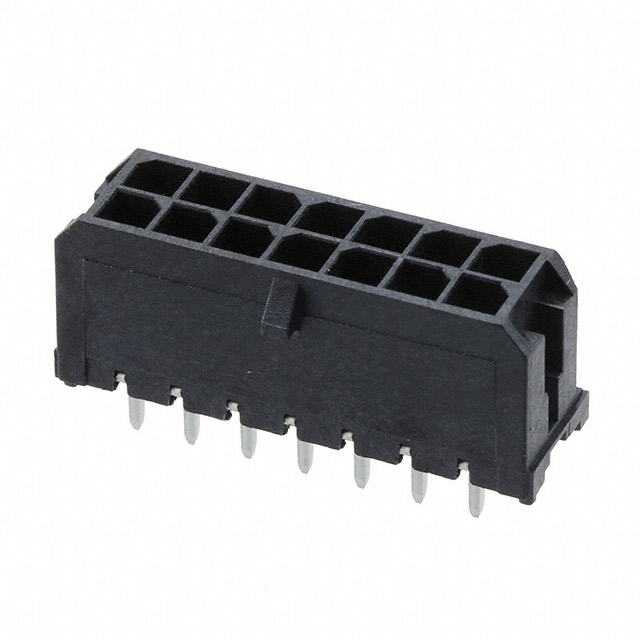

0430451429
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0430451429 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0430451429 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0430451429 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | MICROFIT 3.0 VERT TH HDR DR 30AU |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.582 | $1.518 | $1.392 | $1.328 | $1.265 | |
| 250 pcs | 936 pcs | 1872 pcs | 2808 pcs | ||
| $1.107 | $0.98 | $0.886 | $0.854 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0430451429 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | MICROFIT 3.0 VERT TH HDR DR 30AU | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 43600 pcs | Data sheet | Micro-Fit 3.0™ Datasheet0430451429 Drawing43045 Prod Spec |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Micro-Fit 3.0 43045 |
| Row Spacing - Mating | 0.118" (3.00mm) | Pitch - Mating | 0.118" (3.00mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 0430-45-1429 043045-1429 0430451429-ND 43045-1429 430451429 WM10729 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 14 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Insulation Height | 0.390" (9.91mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole 14 position 0.118" (3.00mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.125" (3.18mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | General Purpose, Medical, Military, Telecommunications |
