0430451008

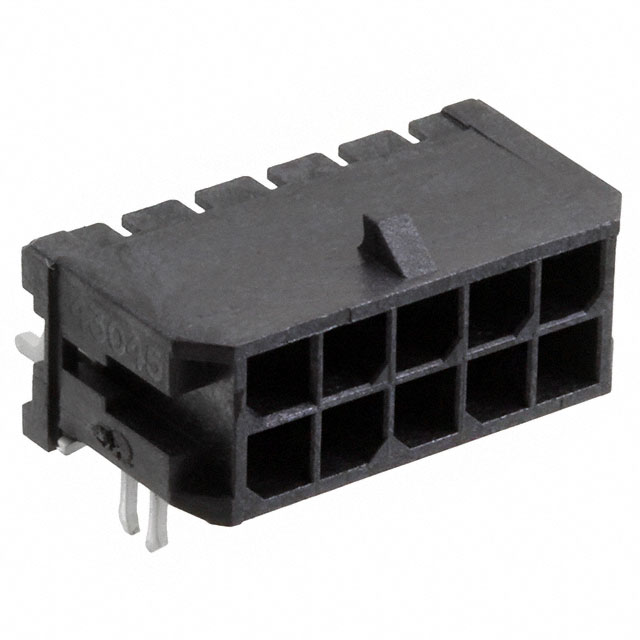

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0430451008 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0430451008 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0430451008 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | MICROFIT 3.0 RA SMT/CLIP DR 30AU |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $2.081 | $1.997 | $1.831 | $1.748 | $1.665 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 0430451008 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | MICROFIT 3.0 RA SMT/CLIP DR 30AU | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 23702 pcs | Data sheet | 0430451008 DrawingMicro-Fit 3.0™ Datasheet43045 Prod Spec |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Micro-Fit 3.0 43045 |
| Row Spacing - Mating | 0.118" (3.00mm) | Pitch - Mating | 0.118" (3.00mm) |
| Packaging | Cut Tape (CT) | Overall Contact Length | - |
| Other Names | WM10741CT | Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 5 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Insulation Height | 0.290" (7.37mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Lock |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Surface Mount, Right Angle 10 position 0.118" (3.00mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | General Purpose, Medical, Military, Telecommunications |
