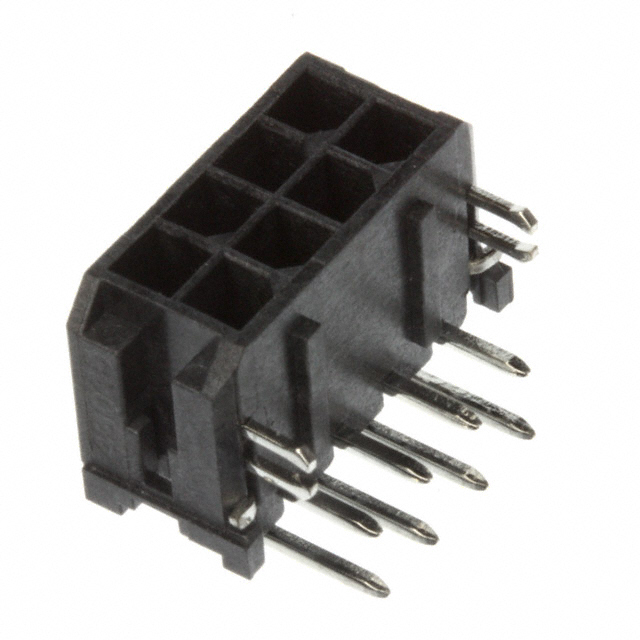

0430450821
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0430450821 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0430450821 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0430450821 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HEADER 8POS 3MM R/A TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.831 | $0.755 | $0.647 | |||
| 500 pcs | 1440 pcs | 5760 pcs | |||
| $0.539 | $0.462 | $0.41 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0430450821 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER 8POS 3MM R/A TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 79405 pcs | Data sheet | Micro-Fit 3.0 DatasheetMicro-Fit 3.0™ Pkg Spec43045 Prod Spec43045-xx21-23 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Micro-Fit 3.0 43045 |
| Row Spacing - Mating | 0.118" (3.00mm) | Pitch - Mating | 0.118" (3.00mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 43045-0821 430450821 WM2675 WM4090 WM4090-ND |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 8 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 5 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Insulation Height | 0.290" (7.37mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Lock |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole, Right Angle 8 position 0.118" (3.00mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.125" (3.18mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 60.0µin (1.52µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose, Medical, Military, Telecommunications |
