0428203244

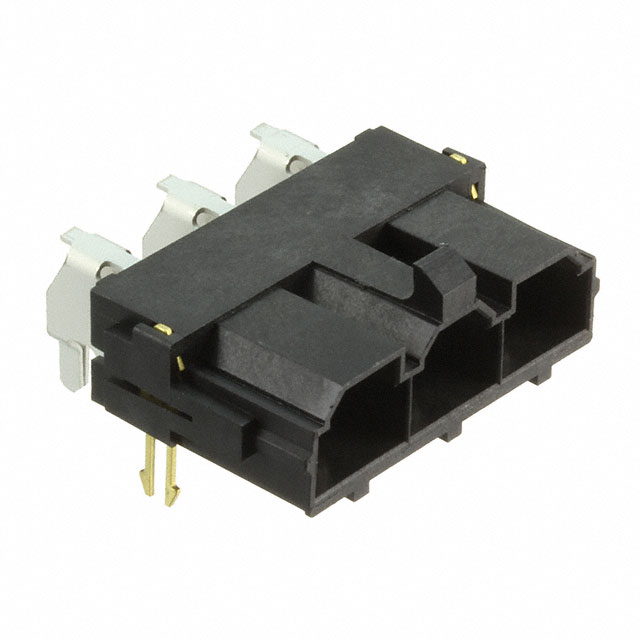

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0428203244 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0428203244 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0428203244 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | MF SR RA HDR ASSY 250 3CKT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 320 pcs | ||||
|---|---|---|---|---|---|
| $1.865 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0428203244 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | MF SR RA HDR ASSY 250 3CKT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 17613 pcs | Data sheet | 0428203244 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Mini-Fit Sr 42820 |
| Row Spacing - Mating | - | Pitch - Mating | 0.394" (10.00mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 428203244 | Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 3 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Insulation Height | 0.421" (10.70mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Lock |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole, Right Angle 3 position 0.394" (10.00mm) |
| Current Rating | - | Contact Type | Male Blade |
| Contact Shape | Rectangular | Contact Material | Copper Zirconium Alloy |
| Contact Length - Post | 0.327" (8.30mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Silver |
| Connector Type | Header | Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
