0426240390

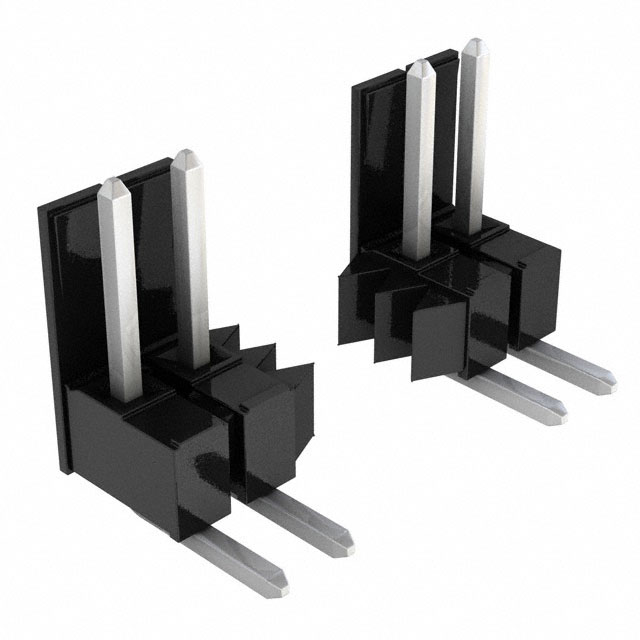

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0426240390 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0426240390 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0426240390 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | 100 KK BKWY HDR TIN 15CKT |
| Lead Free Status / RoHS Status | Not applicable / Not applicable |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0426240390 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | 100 KK BKWY HDR TIN 15CKT | Lead Free Status / RoHS Status | Not applicable / Not applicable |
| Quantity Available | 4626 pcs | Data sheet | 10-07 Prod Spec0426240390 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 1 Wall | Series | KK 42624 |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 042624-0390 42624-0390 426240390 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 15 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Not applicable / Not applicable |
| Insulation Material | Polyamide (PA), Nylon, Glass Filled | Insulation Height | 0.284" (7.21mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole, Right Angle 15 position 0.100" (2.54mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | - | Contact Length - Post | 0.135" (3.43mm) |
| Contact Length - Mating | 0.295" (7.49mm) | Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header, Breakaway |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
