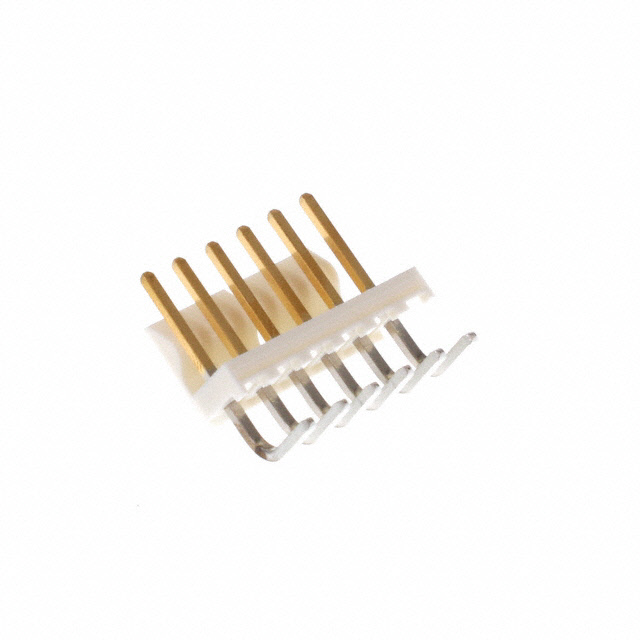

0417920515
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0417920515 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0417920515 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0417920515 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | KK 156 HDR ASSY FRLK RTAN 6CKT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.713 | $0.646 | $0.554 | $0.462 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.396 | $0.351 | $0.343 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0417920515 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | KK 156 HDR ASSY FRLK RTAN 6CKT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 59563 pcs | Data sheet | 0417920515 DrawingKK® 41792 Series Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 1 Wall | Series | KK 41792 |
| Row Spacing - Mating | - | Pitch - Mating | 0.156" (3.96mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 0417-92-0515 041792-0515 0417920515-ND 41792-0515 417920515 WM20122 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 6 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyester, Glass Filled |
| Insulation Height | 0.394" (10.00mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | - |
| Fastening Type | Friction Lock | Detailed Description | Connector Header Through Hole, Right Angle 6 position 0.156" (3.96mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | - |
| Contact Length - Post | 0.156" (3.96mm) | Contact Length - Mating | 0.450" (11.43mm) |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
